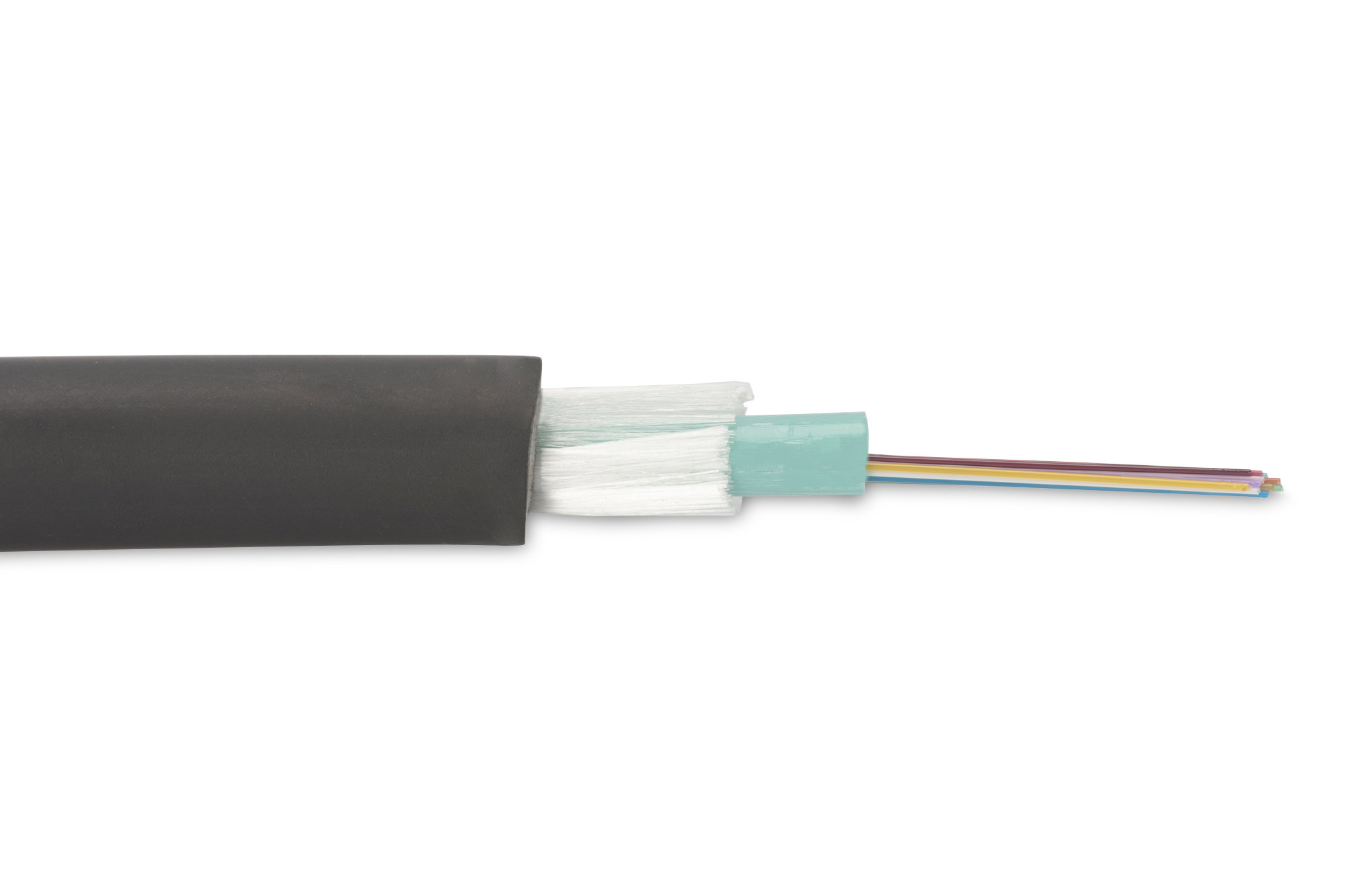

Assmann DK-39041-U İç Mekan Fiber Optik Kablo 4 Core A/I-DQ BH 9/125µ OS2

LSZH – low smoke zero halogen UV-resistant Longitudinaly and laterally water-resistant Glass yarn armoured Non-metal rodent protection Metal free Attenuation at 1310nm : ≤ max. 0.34 dB/km (before cabling) ; ≤ max. 0.36 dB/km (after cabling) Attenuation at 1550nm: ≤ max. 0.21 dB/km (before cabling) ; ≤ max. 0.22 dB/km (after cabling) Attenuation at 1625nm : ≤ max. 0.23 dB/km (before cabling) ; ≤ max. 0.25 dB/km (after cabling) Zero Dispersion Wavelength : 1302 ~ 1324 nm Zero Dispersion Slope : ≤ 0.092 ps/nm 2 x km PMD Link value ( M= 20 cables Q= 0.01%) max. PMDQ : 0.2 ps/√km Cable Cutoff Wavelength (λcc) : ≤ 1260 nm Macro bending Loss (100 turns ; Φ50nm) at 1550 nm : ≤ 0.05 dB Macro bending Loss (100 turns ; Φ50nm) at 1625 nm : ≤ 0.10 dB Mode Field Diameter at 1310nm : 9.2 ± 0.4 µm Cladding diameter : 125 ± 1 µm Core/ clad concentricity error : ≤ 0.6 µm Cladding Non-Circularity : ≤ 1.0 % Proof stress : ≥ 0.69 Gpa Fiber count (OS2 G.652D) : 2-12 pc Max. number of loose tube : 1 pc Fiber number per tube : 2 - 12 pc Loose tube : 2.0 ± 0.2 mm Outher sheath material : LSZH, CPR Dca, EN 50575: 2014+A1: 2016 Cable outer diameter : 6.5 ± 0.5 mm Max. allowable pulling force : 1400 N Crush resistance : 1000/200 N/100mm Temperature range : transport and storage : - 40°C to + 70°C ; installation : - 40°C to + 60°C ; operation : - 40°C to + 70°C Min. bending radius : installation : 20 x OD ; operation : 10 x OD Application: universal Cable jacket: LSOH Cable type: U-DQ (ZN) BH X E 9/125µm Color cable: black Fiber class: OS2 Fiber diameter: 9/125µ Mode: Singlemode Number of fibers: 4
