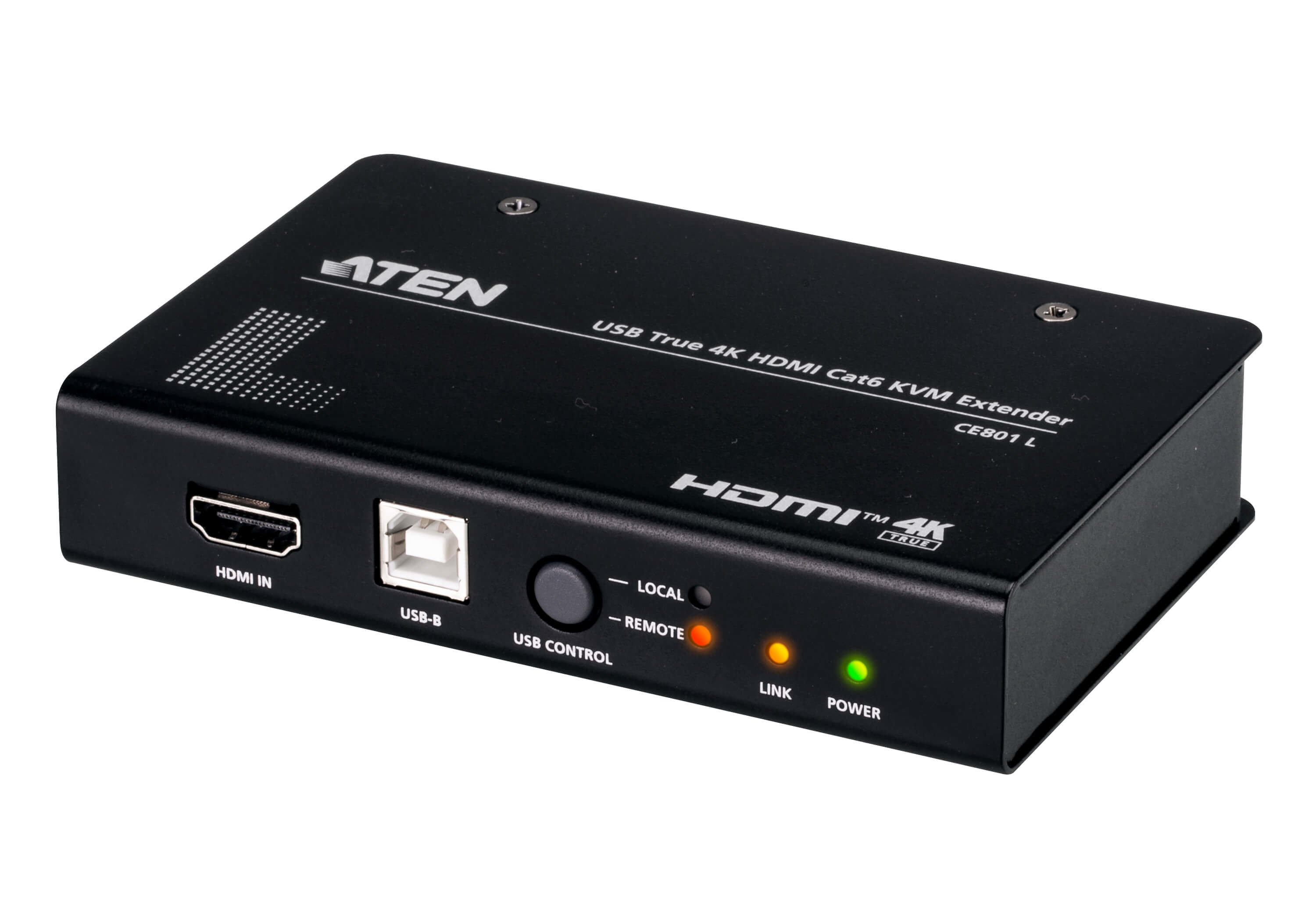

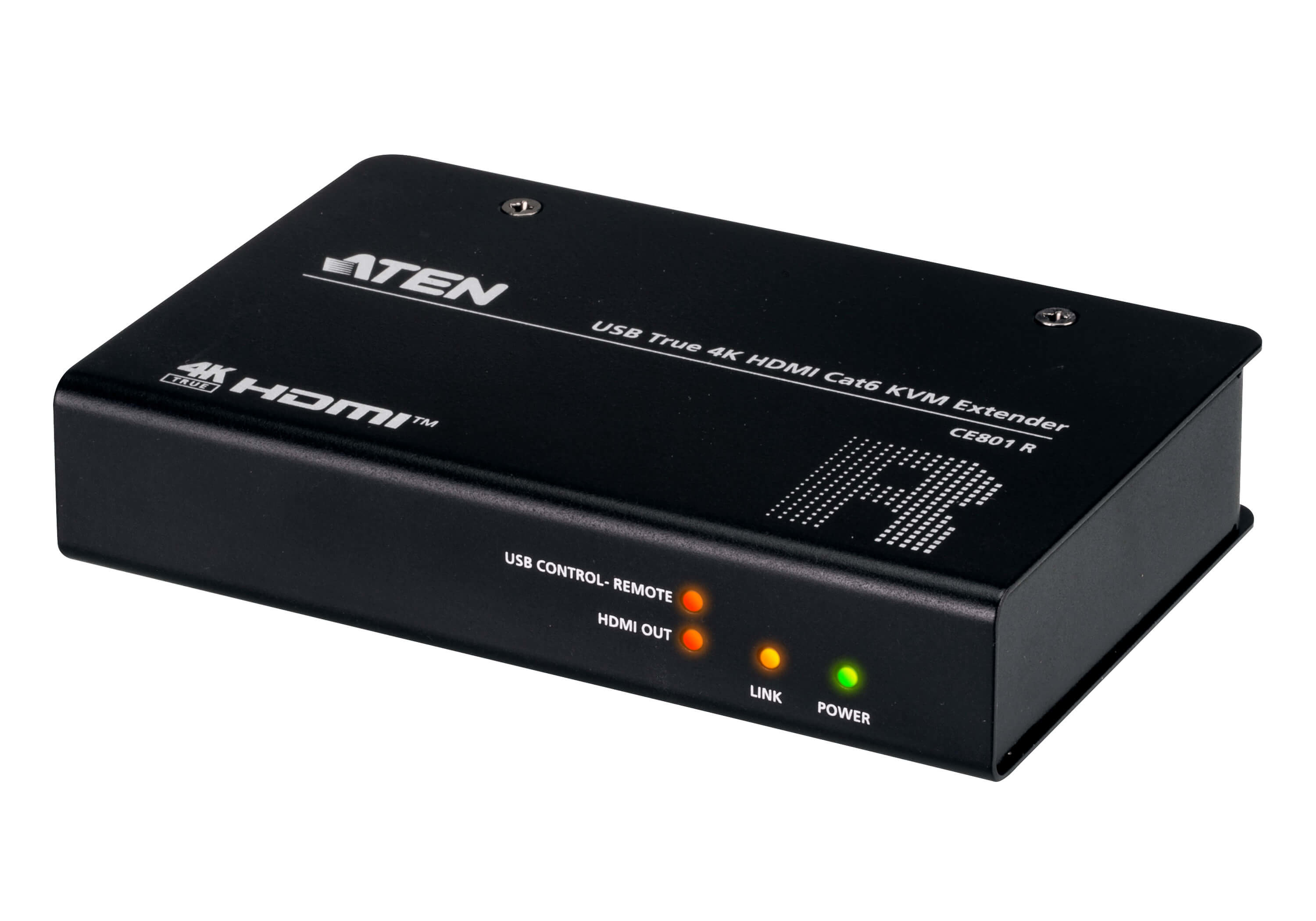

Aten CE801 USB True 4K HDMI Cat 6 KVM Extender

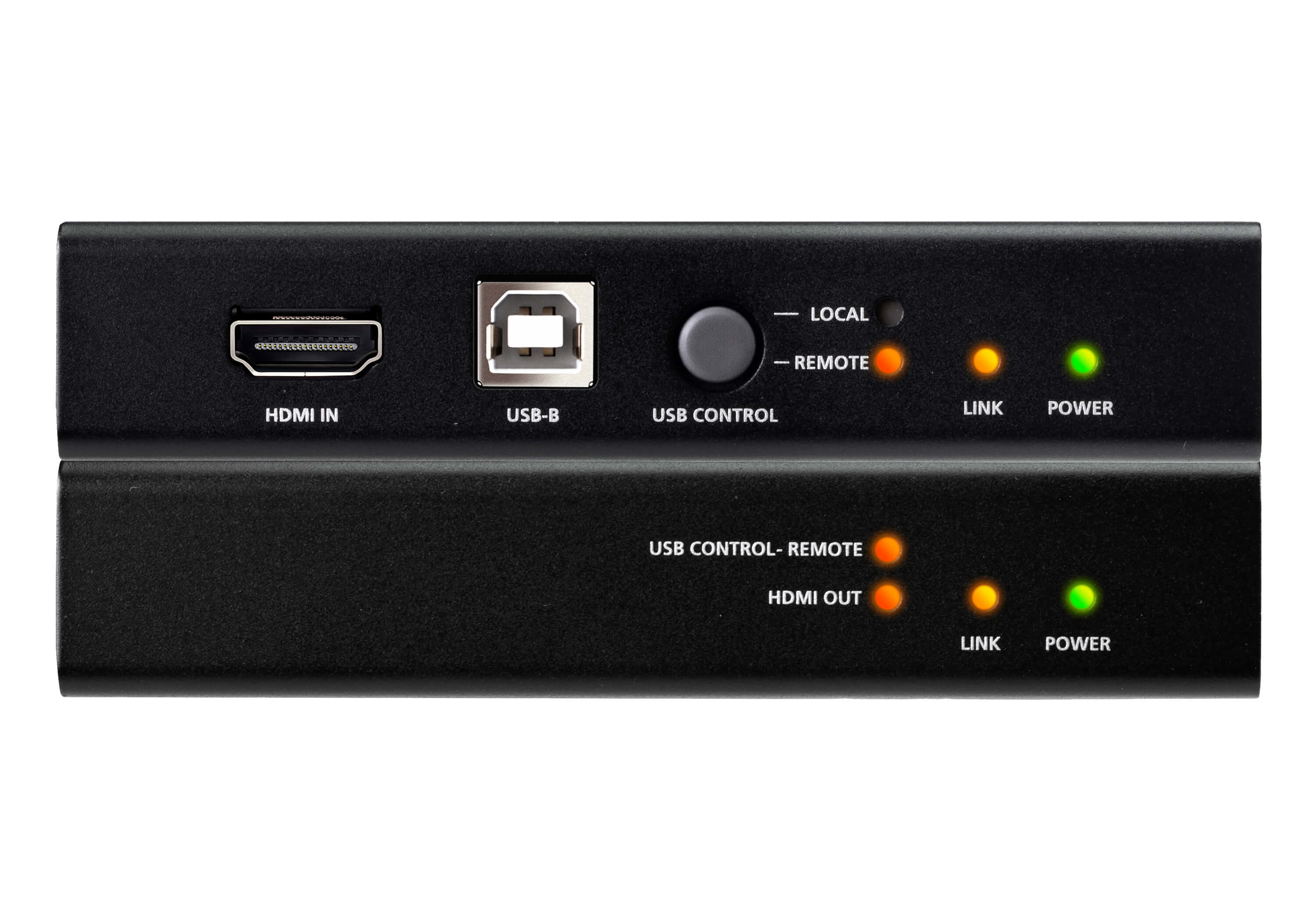

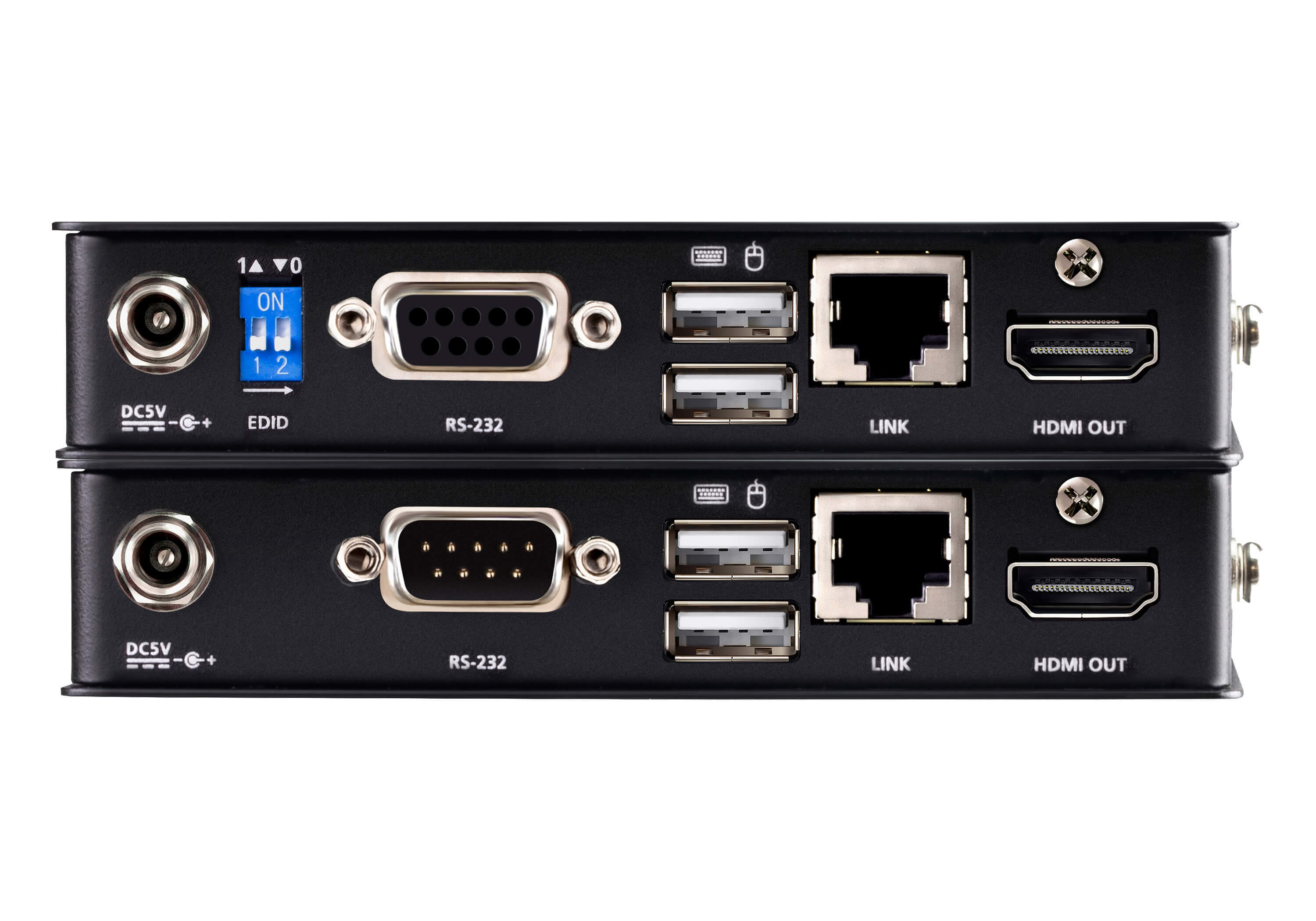

Extends HDMI video, USB keyboard/mouse control, embedded audio, and RS-232 control signals across 70 m over a Cat 6 cable Long reach mode – 1080p extension up to 100 m Supports resolutions up to 3840 x 2160 @ 60 Hz (4:4:4) with HDCP 2.2 / 2.3 compliance Dual console USB keyboard / mouse operation - control privilege between the remote and local units switchable via USB control mode pushbutton Supports HDR 10 for enhanced video quality Supports wide screen format Supports digital audio formats such as 7.1ch Dolby and DTS audio Plug-and-play with no software or driver required Built-in 8KV/15KV ESD protection Rack-mountable DC Jack with screw-lock ensures stable and secure connection Function CE801L CE801R Connectors Console Ports 1 x HDMI Female (Black) 2 x USB Type A Female (White)* * For Keyboard & Mouse only 1 x HDMI Female (Black) 2 x USB Type A Female (White)* * For Keyboard & Mouse only KVM Ports 1 x HDMI (Female, Black) 1 x USB Type B (Female, White) N/A RS-232 1 x DB-9 Female (Black) 1 x DB-9 Male (Black) Power 1 x DC Jack with locking 1 x DC Jack with locking Unit To Unit 1 x RJ-45 Female (Black) 1 x RJ-45 Female (Black) Video Compliance HDMI (4K/60Hz); 4K HDR HDCP2.3 Compatible HDMI (4K/60Hz); 4K HDR HDCP2.3 Compatible Max. Resolution 3840 x 2160 @ 60Hz (4:4:4) 3840 x 2160 @ 60Hz (4:4:4) Max. Resolutions / Distance 4K x 2K @ 60Hz (4:4:4) up to 70m (Cat 6/6a /ATEN 2L-29330 Cat 6 cable) 1920 x 1080 @ 60Hz (4:4:4) up to 100m (Cat 6/6a/ATEN 2L-29330 Cat 6 cable with Long reach mode enabled ) 4K x 2K @ 60Hz (4:4:4) up to 70m (Cat 6/6a/ATEN 2L-29330 Cat 6 cable) 1920 x 1080 @ 60Hz (4:4:4) up to 100m (Cat 6/6a/ATEN 2L-29330 Cat 6 cable with Long reach mode enabled ) LEDs Power 1 (Green) 1 (Green) Link 1 (Orange) 1 (Orange) Video N/A 1 (Orange) Console Status 2 (Orange) 1 (Orange) Switches DIP 1 x 2 pin N/A Pushbuttons Operating Mode Selection 1 x Pushbutton N/A Power Consumption DC5V:2.59W:28BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. DC5V:1.88W:13BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. Environmental Operating Temperature 0-40˚C 0-40˚C Storage Temperature -20-60˚C -20-60˚C Humidity 0-80% RH, Non-condensing 0-80% RH, Non-condensing Physical Properties Housing Metal Metal Weight 0.32 kg ( 0.7 lb ) 0.31 kg ( 0.68 lb ) Dimensions (L x W x H) 12.80 x 8.21 x 2.50 cm (5.04 x 3.23 x 0.98 in.) 12.80 x 8.15 x 2.50 cm (5.04 x 3.21 x 0.98 in.) Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. Remote HDMI out 640 x 480 @ 60/67/72/75 Hz 1600 x 1200 @ 60 Hz 640 x 480 60 Hz (4:3) 1680 x 1050 @ 60 Hz 480p 60 Hz (4:3)/(16:9) 1920 x 1080 @ 60 Hz 576p 50 Hz (4:3)/(16:9) 720p 50/60 Hz 800 x 600 @ 56/60/72/75 Hz 1080i 50/60 Hz 1024 x 768 @ 60/70/75 Hz 1080p 24/25/30/50/60 Hz 1280 x 800 @ 60 Hz 1080p 60 Hz 1280 x 1024 @ 60/75 Hz 3840 x 2160p 24/25/30 Hz 1400 x 1050 @ 60 Hz 3840 x 2160p 50/60 Hz 4:2:0 1440 x 900 @ 60 Hz
