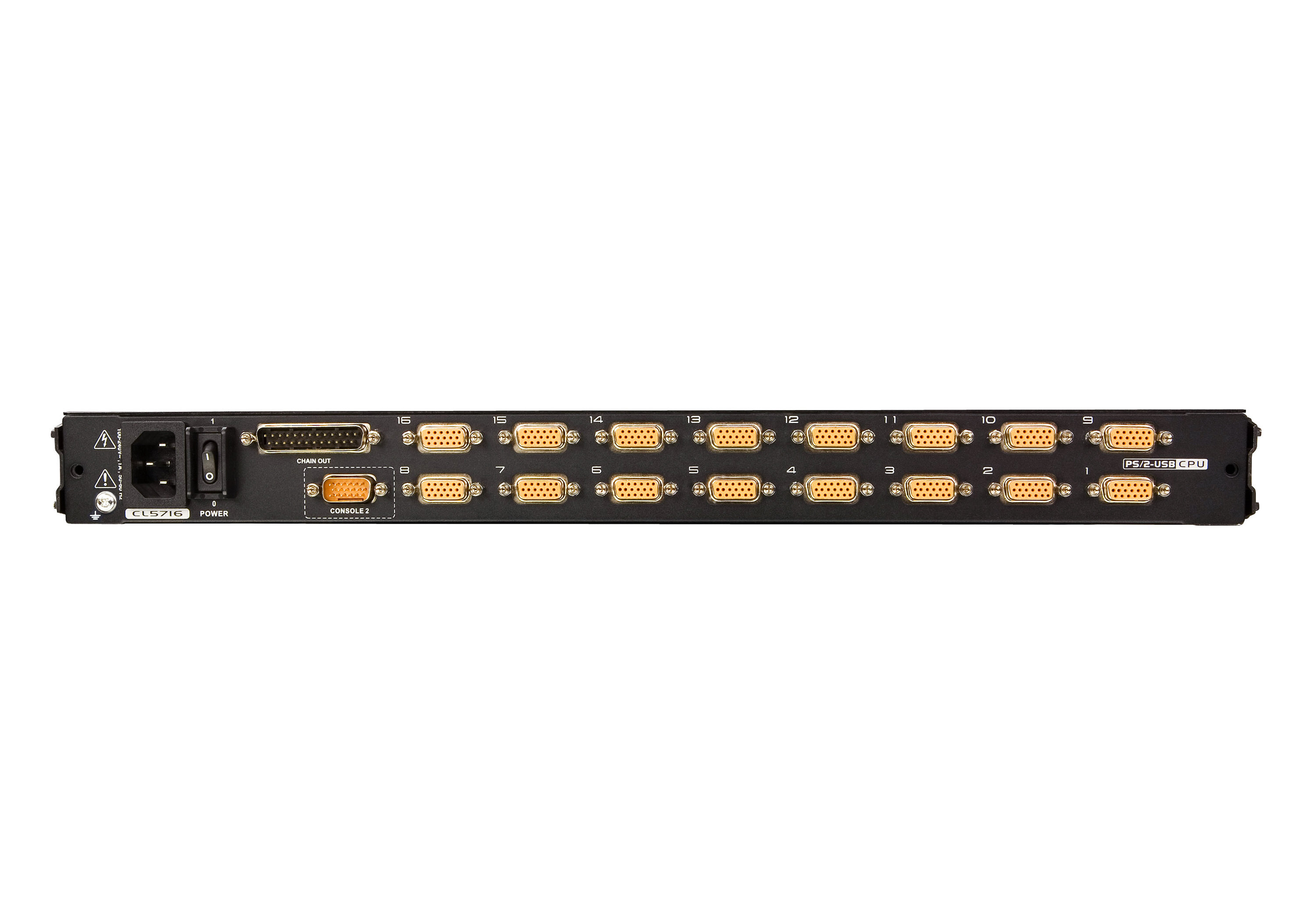

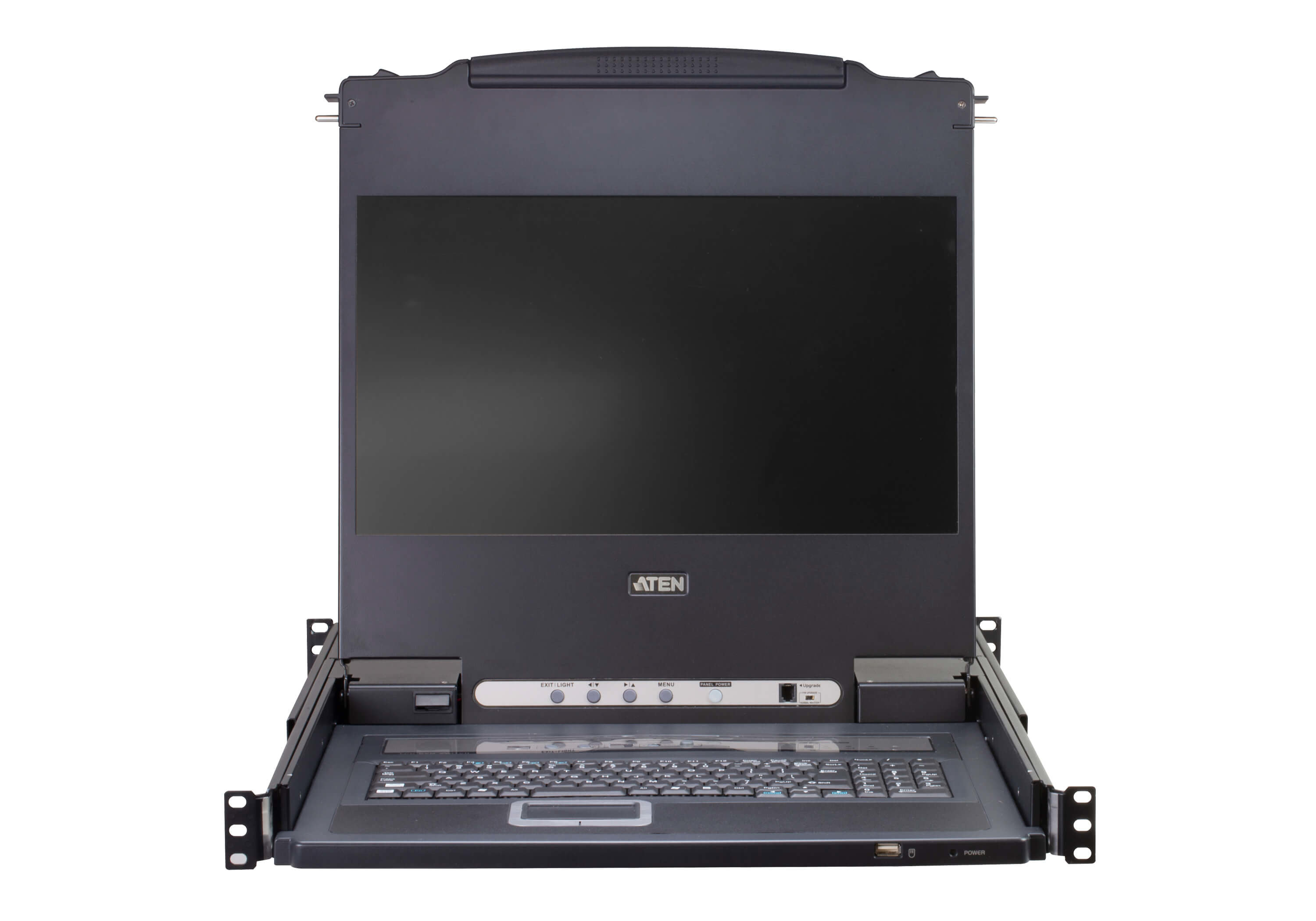

Aten CL5716MWT 17.3" LCD 16-Port PS/2-USB VGA Single Rail LCD KVM Switch

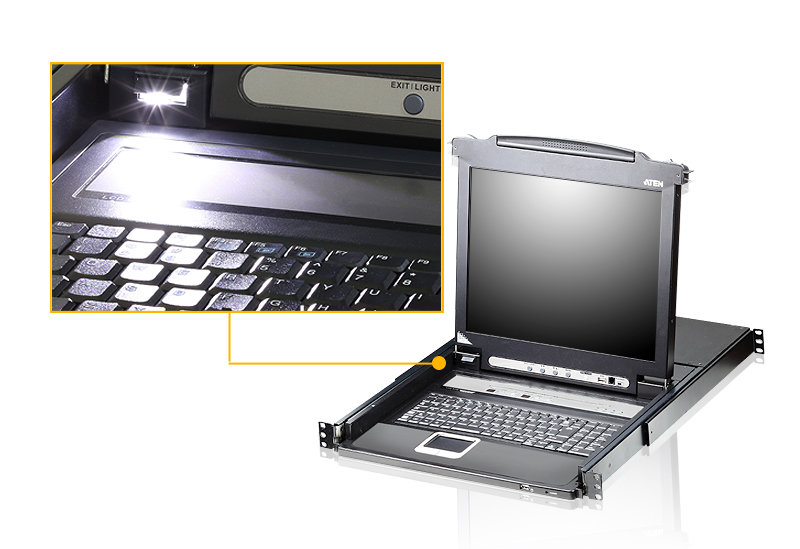

Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions Integrated KVM console with 17”, 17.3”or 19“ LED-backlit LCD monitor in a Slideaway™ housing Available with or without fingerprint identification reader 1 Space saving technology – up to two consoles (one bus) control up to 8 or 16 computers Daisy-chain up to 31 additional units – controls up to 512 computers from a single console Dual interface – supports computers and console with PS/2 or USB keyboards and mice USB port allows each computer to access USB peripherals 2 (inapplicable to CL5716MW) LCD module rotates up to 120 degrees for a more comfortable viewing angle Multiplatform support – Windows, Linux, Mac, and Sun Supports multimedia USB keyboards for PC, Mac and Sun Auto PS/2 and USB interface detection Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port) Superior video quality – supports resolutions of up to 1280 x 1024 @ 75 Hz (CL5716M / CL5716FM / CL5716N) and 1920 x 1080 @ 60 Hz (CL5716MW) No software required –convenient computer selection via front panel pushbuttons, hotkeys and multilingual onscreen display (OSD) menus Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel LED indicates station's position Port names automatically reconfigured when station sequence is changed Two level password security – only authorized users can view and control computers Supports one administrator and four user accounts with separate profiles Auto Scan mode enables continuous monitoring of user-selected computers Broadcast supports – commands from the keyboard can be broadcast to all available computers on the installation Hot pluggable Beeper on / off via hotkey and OSD Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable Optional rack mount kits available including easy installation options Keyboard Language supports: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese Note: 1. The fingerprint reader can be used as an alternate means of logging in to the switch. From 1 to 4 fingers can be scanned for each user and the administrator, with any one of the recorded fingerprints used to log in. 2. The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections (inapplicable to CL5716MW). Function CL5716M CL5716MW CL5716N Computer Connections Direct 16 16 16 Maximum 512 (via Daisy-chain) 512 (via Daisy-chain) 512 (via Daisy-chain) Port Selection OSD, Hotkey, Pushbutton OSD, Hotkey, Pushbutton OSD, Hotkey, Pushbutton Connectors KVM Ports 16 x SPHD Female (Yellow) 16 x SPHD Female (Yellow) 16 x SPHD Female (Yellow) Daisy Chain Ports 1 x DB-25 Male 1 x DB-25 Male 1 x DB-25 Male Firmware Upgrade 1 x RJ-11 Female 1 x RJ-11 Female 1 x RJ-11 Female Power 1 x IEC 60320/C14 1 x IEC 60320/C14 1 x IEC 60320/C14 External Console Ports 1 x SPHD Male (Yellow) 1 x SPHD Male (Yellow) 1 x SPHD Male (Yellow) External Mouse Port 1 x USB Type A Female (Front) 1 x USB Type A Female (Front) 1 x USB Type A Female (Front) USB Port 1 x USB Type A Female N/A 1 x USB Type A Female Switches Port Selection 2 x Pushbutton 2 x Pushbutton 2 x Pushbutton Station Selection 2 x Pushbutton 2 x Pushbutton 2 x Pushbutton Reset 1 x Semi-recessed Pushbutton 1 x Semi-recessed Pushbutton 1 x Semi-recessed Pushbutton Firmware Upgrade 1 x Slide Switch 1 x Slide Switch 1 x Slide Switch Power 1 x Rocker Switch 1 x Rocker Switch 1 x Rocker Switch LCD Control 4 x Pushbutton 4 x Pushbutton 4 x Pushbutton LCD Power 1 x LED Pushbutton 1 x LED Pushbutton 1 x LED Pushbutton LEDs Online 16 (Orange) 16 (Orange) 16 (Orange) Port ID 2 x 7-segment LED Display (Orange) 2 x 7-segment LED Display (Orange) 2 x 7-segment LED Display (Orange) Station ID 2 x 7-segment LED Display (Orange) 2 x 7-segment LED Display (Orange) 2 x 7-segment LED Display (Orange) Power 1 (Dark Green) 1 (Dark Green) 1 (Dark Green) Lock 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) LED Illumination Light 1 x LED Illumination Light 1 x LED Illumination Light 1 x LED Illumination Light Panel Spec LCD Module 17" TFT-LCD 17.3" TFT-LCD 19" TFT-LCD Resolution 1280 x 1024 @ 75 Hz 1920 x 1080 @ 60 Hz 1280 x 1024 @ 75 Hz Response time 5 ms 16 ms 5 ms Viewing Angle 170° (H), 160° (V) 170° (H), 170° (V) 170° (H), 160° (V) Pixel Pitch 0.264 mm x 0.264 mm 0.1989 mm x 0.1989 mm 0.294 mm x 0.294 mm Support Color 16.77M colors 16.77M colors 16.77M colors Contrast Ratio 1000 : 1 800 : 1 1000 : 1 Luminance 250 cd/m² 250 cd/m² 250 cd/m² Video Input Video Resolution up to 1920 × 1200 @ 60 Hz; 1280 × 1024 @ 75 Hz, DDC2B up to 1920 × 1200 @ 60 Hz (all resolution @ 60Hz only); 1920 × 1080 @ 60 Hz, DDC2B up to 1920 × 1200 @ 60 Hz; 1280 × 1024 @ 75 Hz, DDC2B Scan Interval 1-255 seconds 1-255 seconds 1-255 seconds Emulation Keyboard / Mouse PS/2, USB PS/2, USB PS/2, USB Maximum Input Power Rating 100-240V AC, 50/60Hz, 1A 100-240V AC, 50/60Hz, 1A 100-240V AC, 50/60Hz, 1A Power Consumption AC110V:24.7W:129BTU AC220V:25.8W:134BTU AC110V:14.8W:80BTU AC220V:15.6W:84BTU AC110V:26.9W:139BTU AC220V:27.9W:144BTU Environmental Operating Temperature 0-40°C 0-40°C 0-50°C Storage Temperature -20-60°C -20-60°C -20-60°C Humidity 0-85% RH, Noncondensing 0-85% RH, Noncondensing 0-85% RH, Noncondensing Physical Properties Housing Metal + Plastic Metal + Plastic Metal + Plastic Rail Type Single Rail Single Rail Single Rail Weight 13.59 kg ( 29.93 lb ) 13.65 kg ( 30.07 lb ) 13.65 kg ( 30.07 lb ) Dimensions (L x W x H) 48.00 x 64.27 x 4.40 cm (18.9 x 25.3 x 1.73 in.) 48.00 x 68.92 x 4.40 cm (18.9 x 27.13 x 1.73 in.) 48.00 x 68.92 x 4.40 cm (18.9 x 27.13 x 1.73 in.) Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. Package Contents 1x CL5716 LCD KVM Switch with standard Rack Mount Kit 2x Custom KVM Cable (VGA, USB; 1.8m/6ft) 1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft) 1x Firmware Upgrade Cable 1x Power Cord (AC Power Models) 1x User Instructions
