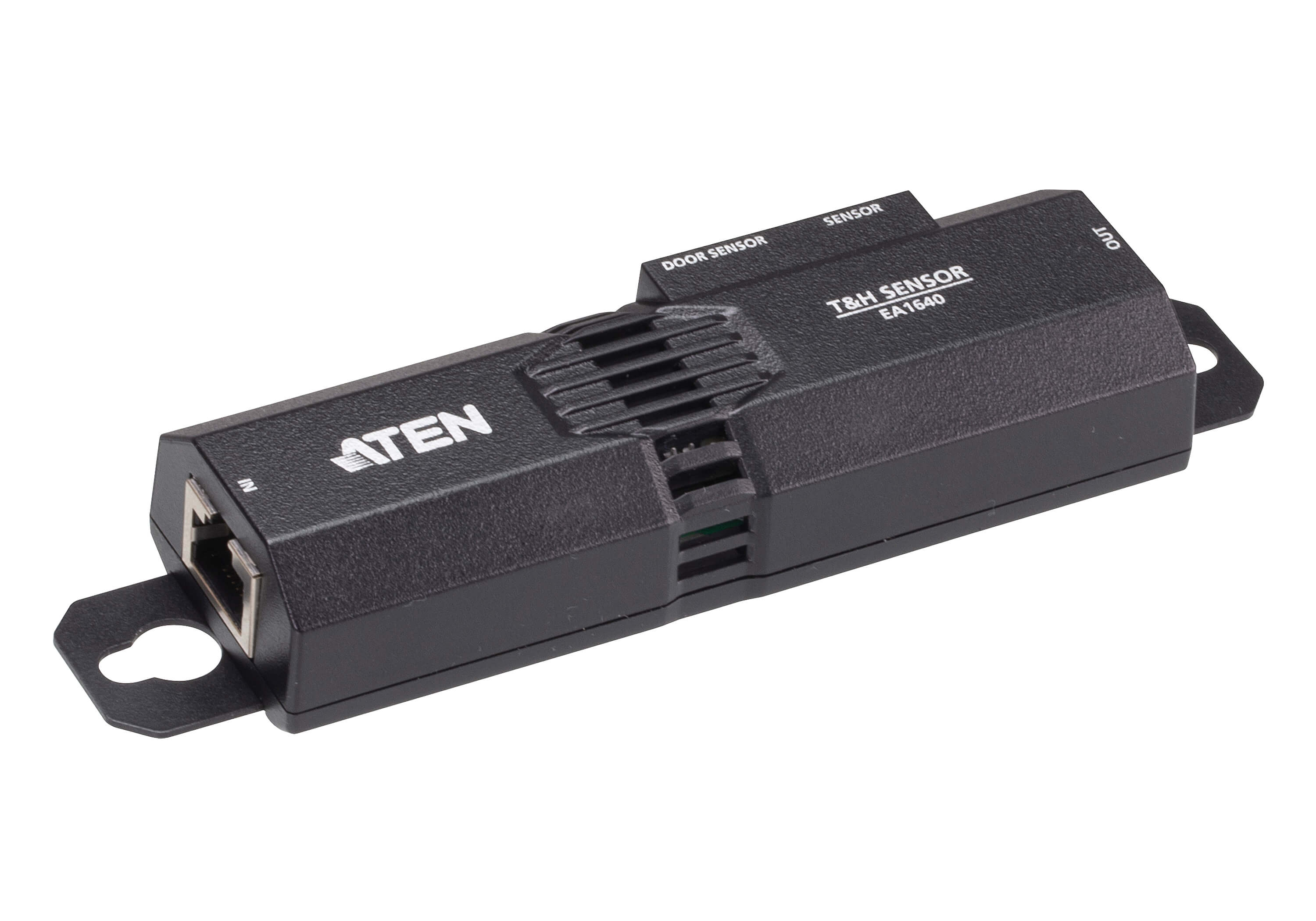

Aten EA1640

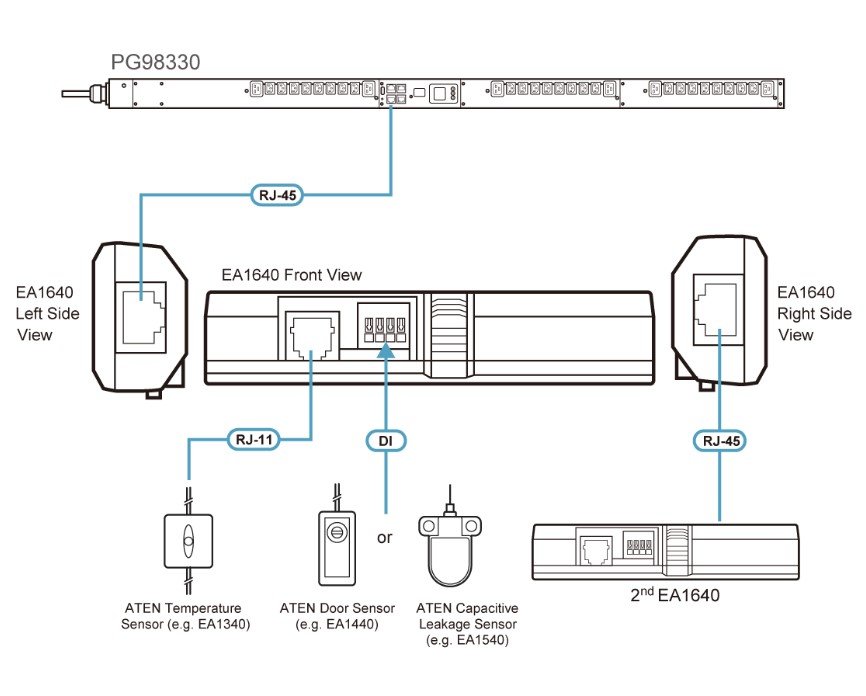

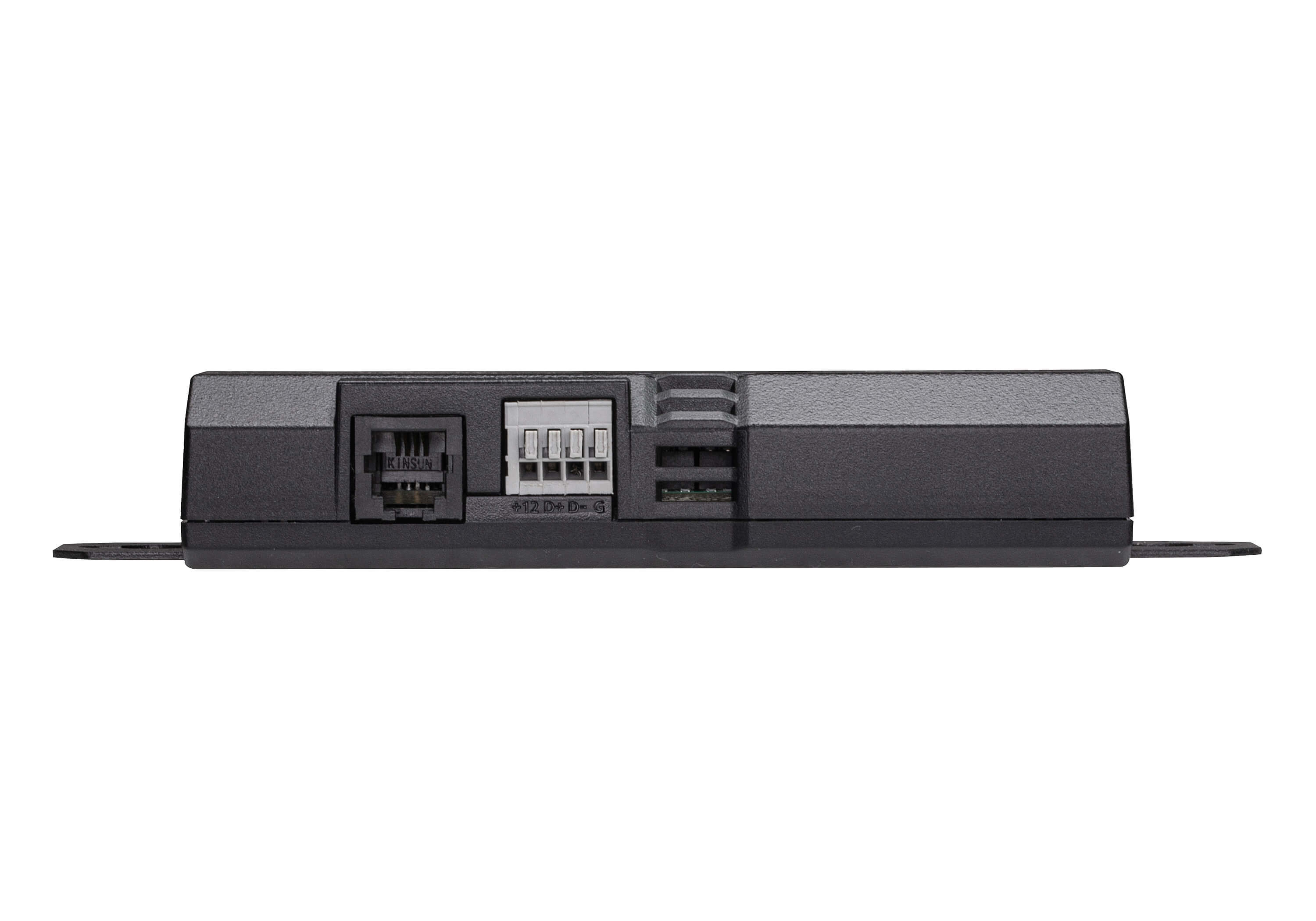

A humidity and temperature measuring solution for ATEN PG PDU series Precise relative humidity accuracy: ±7.5 % RH, 30 – 70 % RH; ±15 % RH, 15 – 40 % RH, 70 – 90 % RH Highly accurate temperature measuring: ±1 °C (Max.), 10 – 40 °C; ±1.5 °C (Max.), –10 – 10 °C, 40 – 75 °C Supports up to 8 daisy-chained devices Multiple interfaces to broaden applications – – 1 x RJ-45 input port, 1 x RJ-45 output port, and 1x RJ-11input port support connection with PG PDU series and EA1140 / EA1240 / EA1340 environmental sensors – 1 x terminal block supports EA1440 / EA1441 / EA1442 door sensor and EA1540 capacitive leakage sensor Meets flexible installation purposes – – Included 1.5 m RJ-45 cable for ideal location placement – Contains a magnet for sticking to metallic surfaces – Included rack mount kits enable quick installation inside racks Overload protection prevents overheating of the protected equipment LED illumination is visible through the transparent enclosure Prevents device malfunctions thanks to early detection in case of overheating / excessive humidity Suitable for applications that require precise measuring, such as server rooms, data center s, hospitals, smartfactories, and green offices Electrical Environment Sensor Ports 1 Port Terminal Block for Door Sensor (EA1440/EA1441/EA1442)/ Capacitive Leakage Sensor (EA1540) 1 Port RJ-11 for Original Temperature Sensor (EA1140/EA1240/EA1340) Measurement Range Temperature: –10 to +75 °C Humidity: 0 to 100% Accuracy Temperature: ±1°C (max), 10 to 40 °C ±1.5°C (max), –10 to 10 °C, 40 to 75 °C Humidity: ±7.5% RH, 30–70% RH ±15% RH, 15–40% RH, 70–90% RH Power Consumption DC12V:0.273W:1 Environmental Humidity (Operating & Storage) 0 – 80% RH, Non-Condensing Temperature (Operating / Storage) –10 to 75 °C / -20 – 70℃ Physical Properties Dimensions (L x W x H) 10.44 x 3.57 x 2.14 cm (4.11 x 1.41 x 0.84 in.) Weight 0.05 kg ( 0.11 lb ) Cable Length 1.5M(RJ45+RJ45) round cable Housing Black Polycarbonate Compliance EMC Verification EMC/FCC, Class A Safety Verification By Request LEDs LED Indicator [Solid]: EA1640 is in working mode [Fast Blinking (for 2 minutes)]: EA1640 receives the command “FindMe”. [Slow Blinking (for 10 seconds)]: Over-current protection (OCP) is triggered, and the sensor(s) connected to EA1640 is going to power off. [Slow Blinking]: Firmware upgrade of EA1640 is in progress. Package Contents 1 x Temperature & Humidity Sensor 2 x rack mount kits 1 x RJ45 Cable 1 x User Instructions
