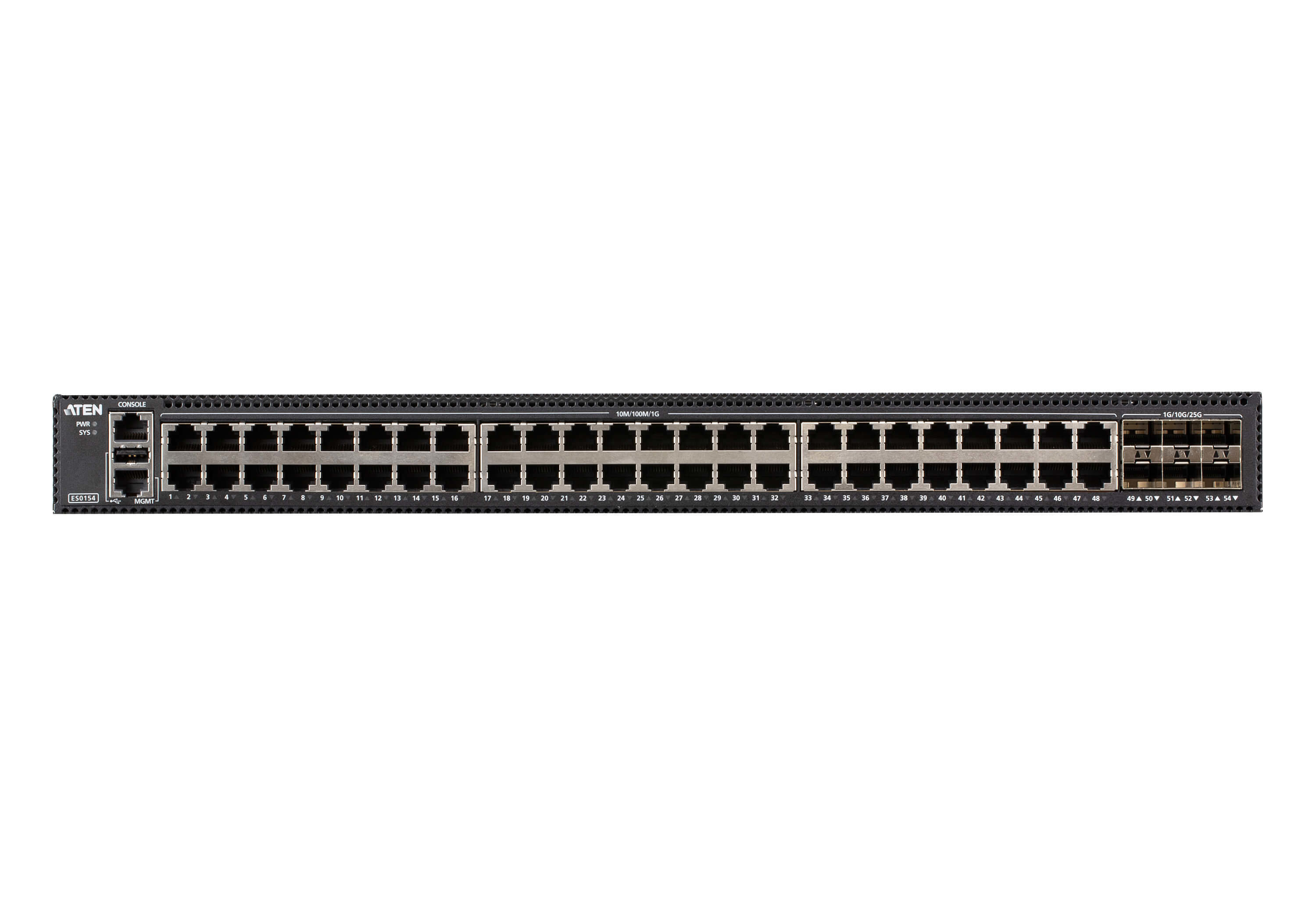

Aten ES0154 54-Port Layer 2+ Gigabit Ethernet Managed Switch

Supports plug-and-play with KE, VE89 series devices Supports 48 Gigabit Ethernet ports and 6 SFP28 uplink ports (up to 25Gbps) High-performance Gigabit Ethernet L2+ access switch with 396 Gbps switching capacity – significantly improve the responsiveness of applications and file transfer times Supports IGMP v1/v2/v3 Snooping and IGMP v1/v2 Querier Supports IGMP Snooping Fast Leave Supports Flow Control Comprehensive QoS – allowing the marking, classification, and scheduling of up to four traffic types across the network Enhanced Security – Port Security limits the total number of devices using a switch port and protects against MAC flooding attacks Supports IEEE 802.1w Rapid Spanning Tree Protocol – ensuring a faster recovery from failed links and enhancing overall network stability and reliability Supports IPv4, IPv6 Connectors RJ-45 10/100/1000 Ports 48 SFP28 Uplink Ports 6 Console Ports 1 x RJ45 Remote Console 1 X RJ45 USB Port 1 Performance Switching Capacity 396 Gbps Forwarding Rate 295 Mpps Flash Memory 256 MB DRAM 1GB MAC Address Table Size 32K Jumbo Frames 10 KB Auto-negotiation Yes Maximum Input Power Rating 100-240V AC,50-60Hz Power Consumption 54W (MAX) 177BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. Environmental Operating Temperature -5–45°C Storage Temperature -40–70°C Humidity 5%–95% RH, Non-condensing Physical Properties Rack Space 19" Housing Metal Weight 4.68 kg ( 10.32 lb ) Dimensions (L x W x H) 44.20 x 42.00 x 4.36 cm (17.4 x 16.54 x 1.72 in.) Carton Lot 1 pc
