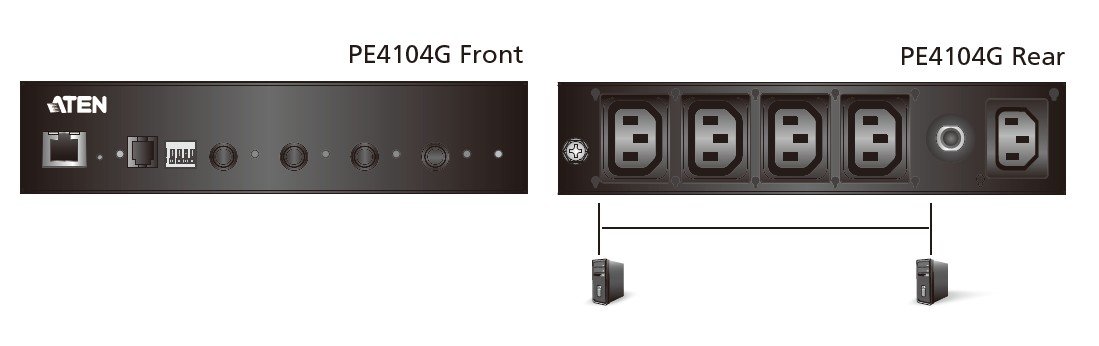

Aten PE4104G

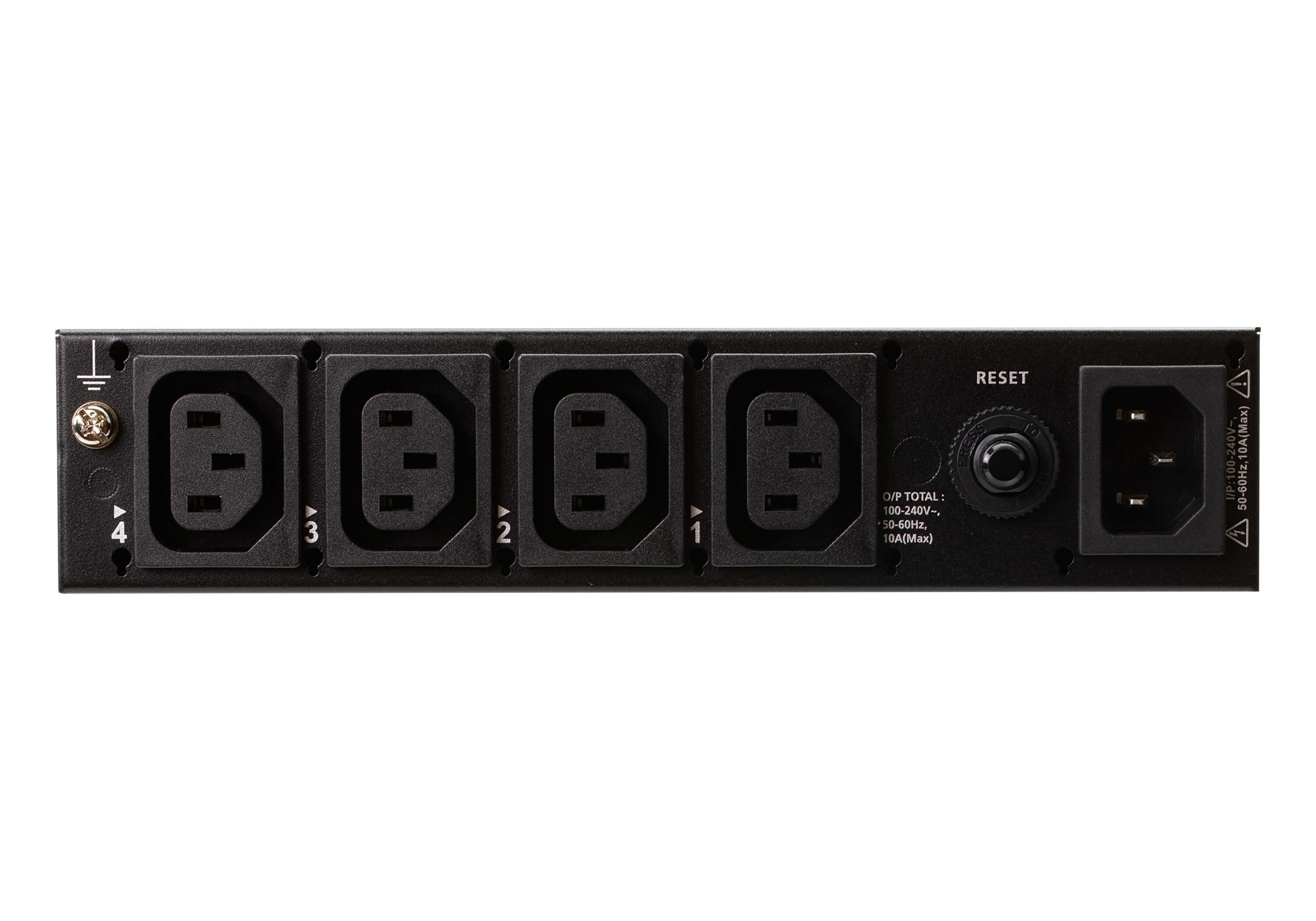

Power Distribution Space saving slim form factor IEC power outlet Separates power for the unit's own power and its power outlets – user interface is still accessible even when an overload condition trips the device’s circuit breaker Remote Access Remote power control via TCP/IP and a built in 10/100 Ethernet port Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, ARP, NTP, DNS, SNMP V1&V2&V3, auto sense, Ping, Telnet, Modbus (Over TCP IP) Works with web-based eco DC software Operation Local and remote power outlet control (On, Off, Power Cycle) by individual outlets Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in a proper order Easy setup and operation via a browser-based user interface Security Two-level password security Strong security features include password protection and advanced encryption technologies – TLS1.2 Remote authentication support: RADIUS Electrical Nominal Input Voltage 100 – 240 VAC Maximum Input Current 10A Max Input Frequency 50-60 Hz Input Connection IEC C14 Input Power 2400VA(Max) Outlet Type (4) IEC 320 C13 Nominal Output Voltage 100 – 240 VAC Maximum Output Current (Outlet) 10A(Max) Maximum Output Current (Bank) 10A(Max) Maximum Output Current (Total) 10A(Max) Breakers Yes(UL1077) Metering No Outlet Switching Yes Power Consumption AC110V:3.1W:20BTU AC220V:3.5W:22BTU Physical Properties Dimensions(W x D x H) 44*115*200mm Weight 0.90 kg ( 1.98 lb ) Power Cord Length 3m Environmental Temperature (Operating / Storage) 0 – 50℃ / -20 – 60℃ Humidity (Operating & Storage) 0 – 80% RH, Non-Condensing Compliance EMC Verification CE-EMC Safety Verification CE-LVD
