Allows sharing of up to 4 USB 3.2 devices among 8 PCs
Bandwidth speed of 5 Gbps and backward compatibility with USB 2.0/1.1 to ensure swift data transmission

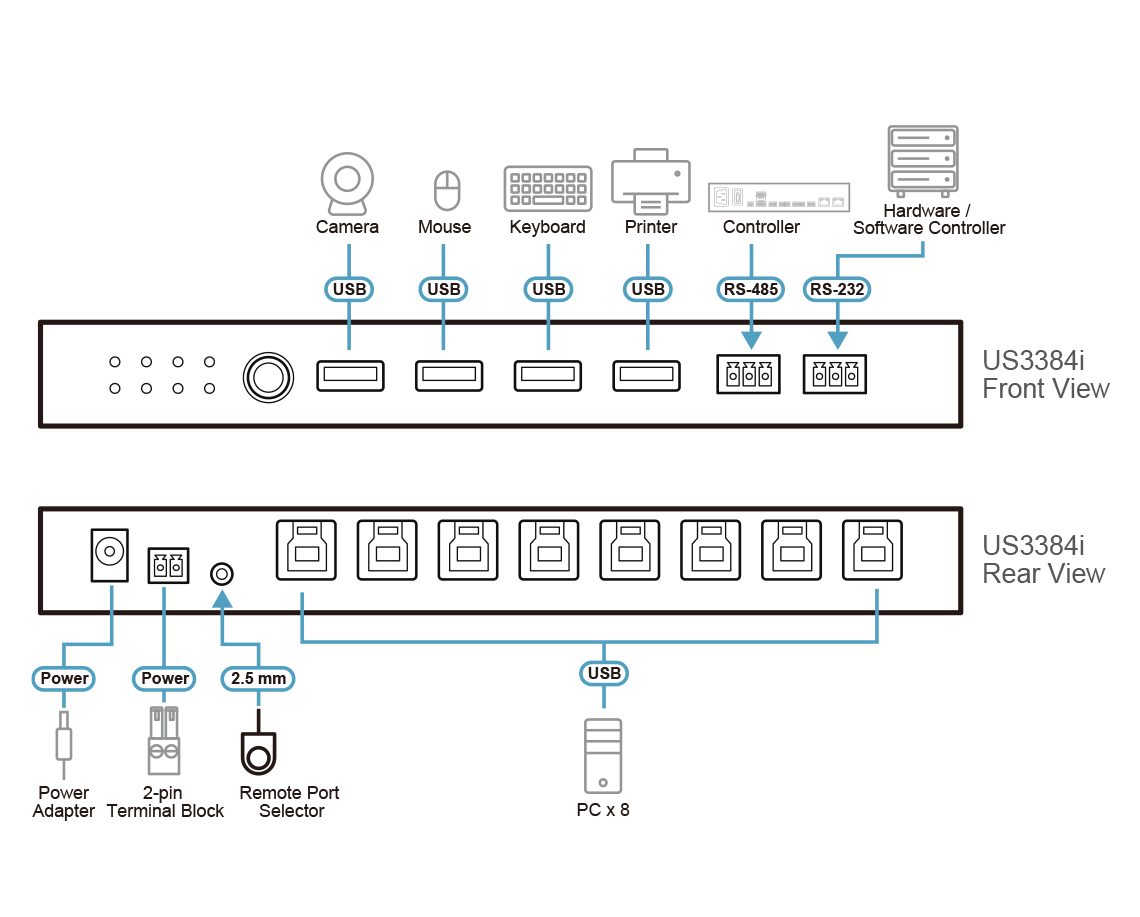

Versatile port selection methods – front panel pushbutton, RS-232/RS-485 serial commands, and external remote port selector 1
Power on Detection
– Automatically switches the PC focus to the last plugged-in/powered-on host device
– Configurable priority port preference – allows the focus to switch to a secondary USB host when the primary one is lost

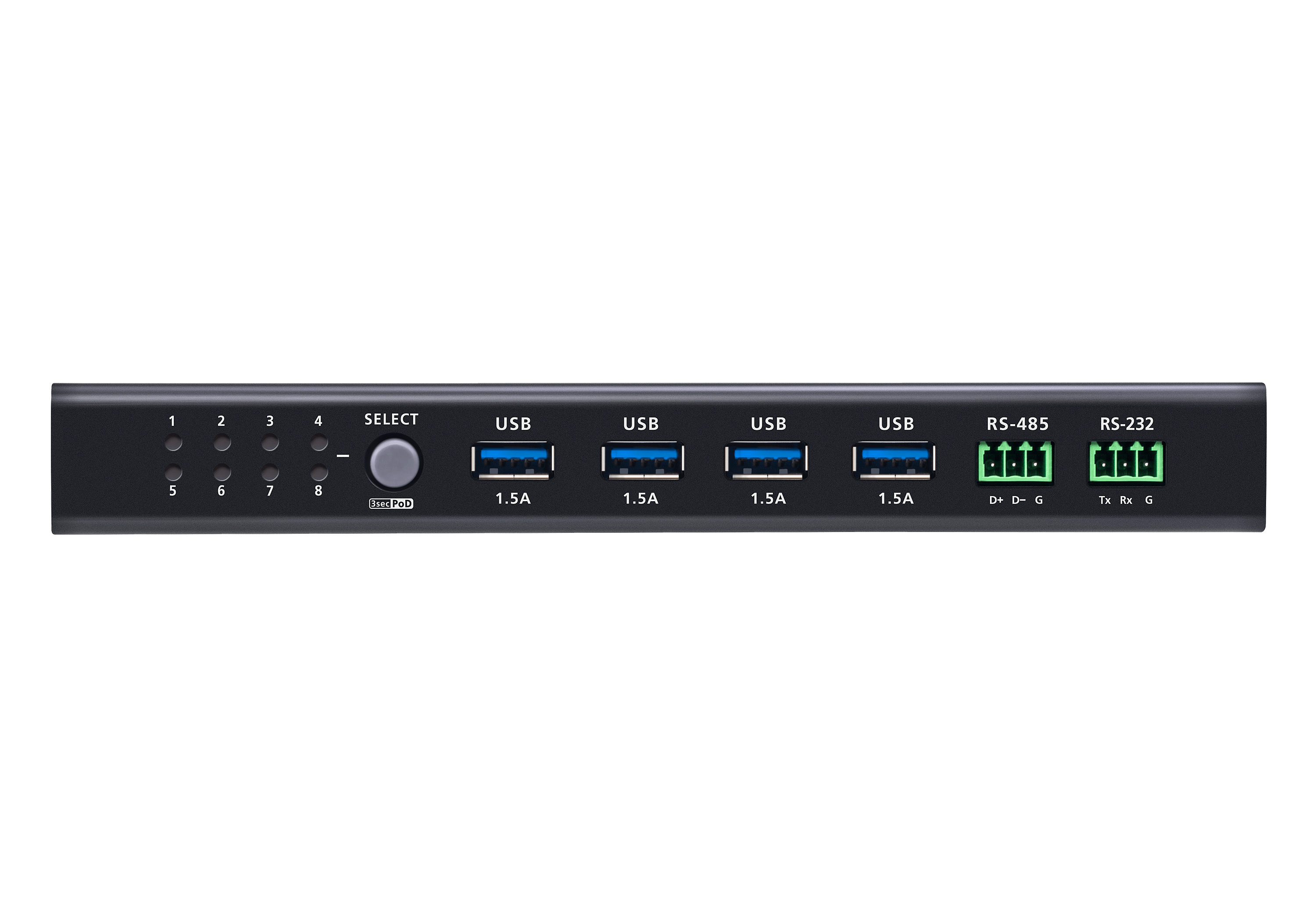

Front panel port status LEDs – indicate which one of the PCs connected to the US3384i is having the focus at a glance
Supports USB BC 1.2 to ensure sufficient power for downstream USB devices
Overvoltage protection circuit – extends device lifespan and minimizes risks of electrical hazards/explosions led by voltage spikes surpassing safe operating limits
Supports DC 9 – 24V power input through terminal block 2
Plug-and-play on Windows and macOS operating systems – no drivers are needed
Hot-pluggable – users can connect/disconnect the host devices dynamically to the US3384i without powering off the switch

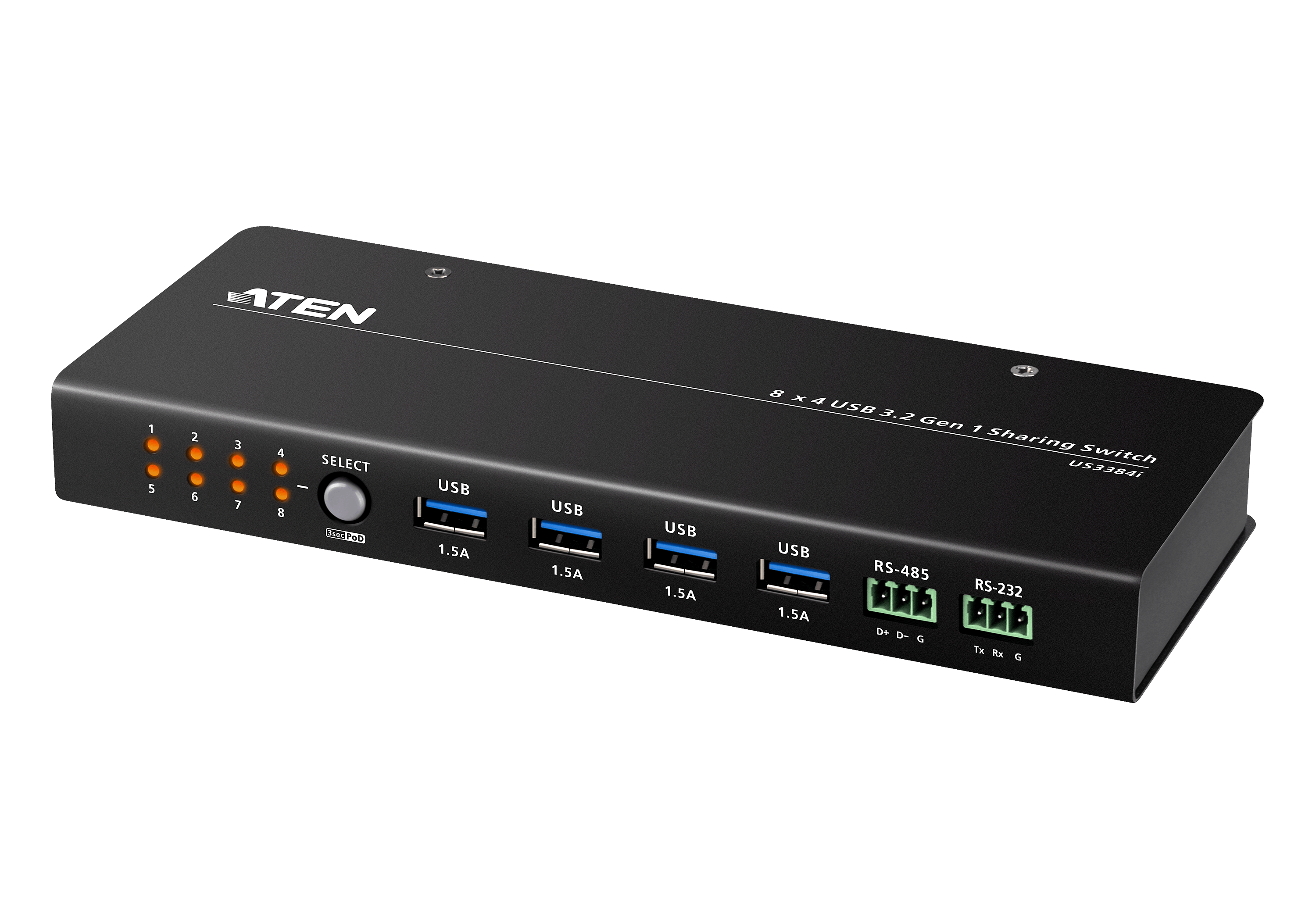

Wall-mountable case constructed with premium metal for enhanced durability
Note:
1. The remote port selector is sold separately, please contact your ATEN dealer for product information.
2. Supports either of the following power supplies:
(1) DC terminal block
(2) DC power jack (The power adapter (0AD8-8012-50M2) is sold separately, please contact your ATEN dealer for product information.)

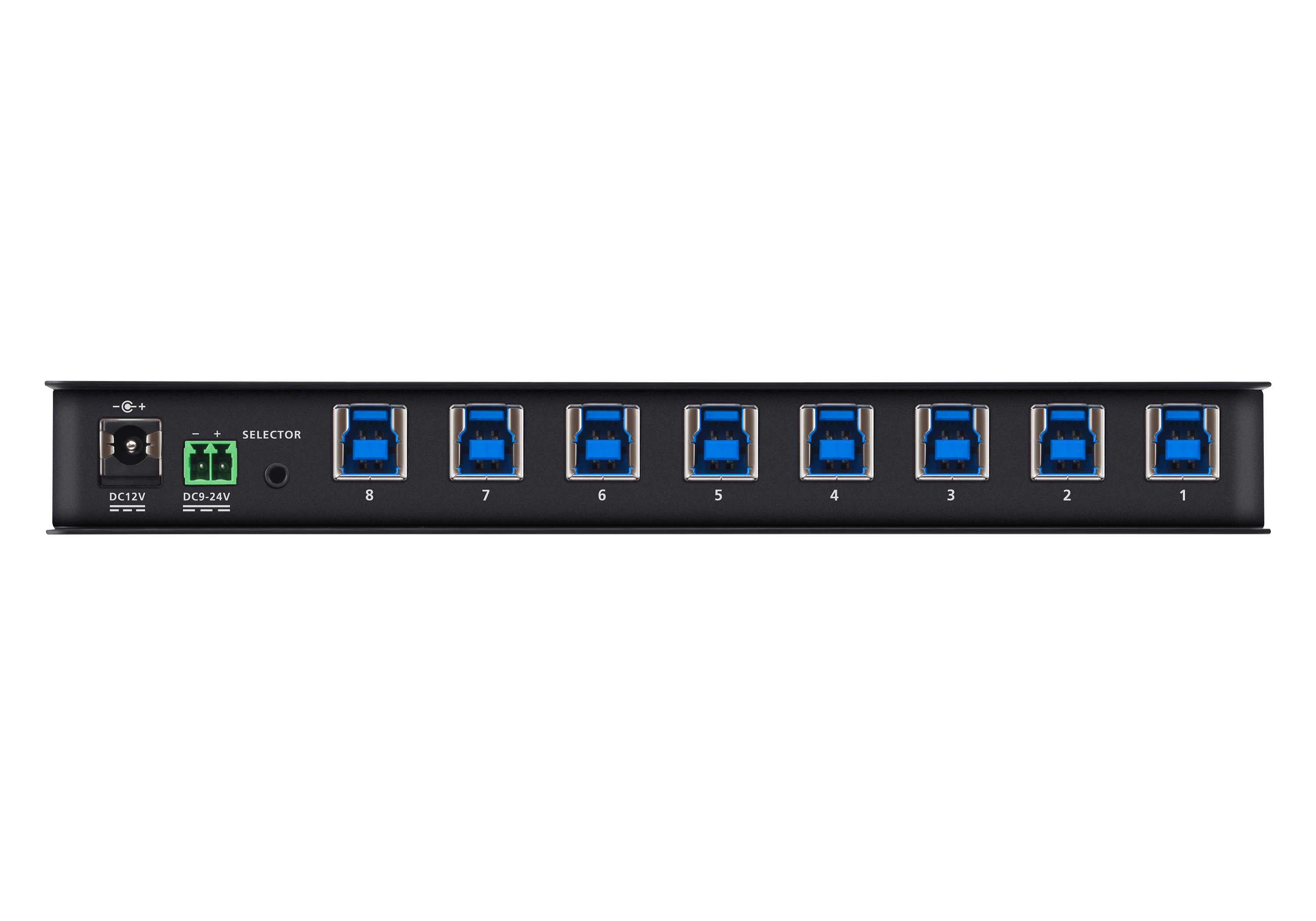

Computer Connections
8
Connectors
Computer
8 x USB 3.2 Gen 1 Type-B Female (Blue)
Device
4 x USB 3.2 Gen 1 Type-A Female (Blue)
Serial
2 x 3-pin Terminal Block (Green)
Power
1 x 2-pin 9-24V Terminal Block (Green)
Power (Optional)
1 x 12V DC Jack Female (Black)
Power Consumption
DC12V:0.52W:130BTU/h
DC24V:0.53W:130BTU/h
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Power Mode
Terminal Block / DC Jack Power Adapter*
*The power adapter (0AD8-8012-50M2) is sold separately, please contact your ATEN dealer for product information.
Port Selection
Pushbutton / Remote Port Selector* / Serial Command
*The remote port selector (2XRT-0016G-1) is sold separately, please contact your ATEN dealer for product information.
LEDs
Selected
8 (Orange)
Cable Length
USB Cable
8 x USB 3.2 Gen 1 Type-A to Type-B Cables 1.2m
Environmental
Humidity
0-80% RH, Non-condensing
Operating Temperature
0–50°C
Storage Temperature
-20–60°C
Physical Properties
Housing
Metal
Weight
0.50 kg ( 1.1 lb )
Dimensions (L x W x H)
20.00 x 8.06 x 2.50 cm
(7.87 x 3.17 x 0.98 in.)
