Extends HDMI or VGA signals over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
Superior video quality:
• HDMI: 4K at distance up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable
• VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable
HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
Designed to mount in a two-gang junction box, compatible with EU & MK type
Built-in PoH (Power over HDBaseT) function – the VE2812AEUT receives power supply from the HDBaseT output port on the connected device
Supports Auto Switch – allows the VE2812AEUT to automatically switch to a newly plugged-in source

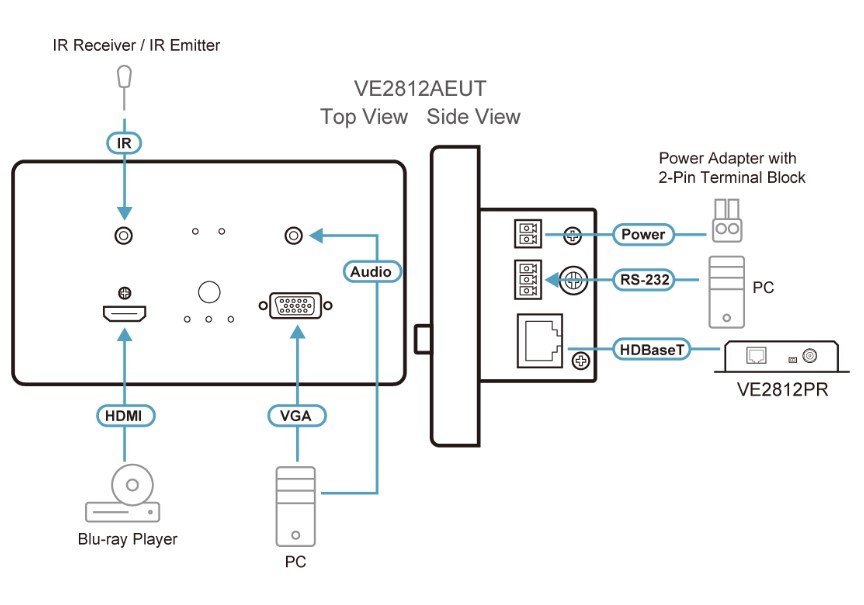

Functions as a switch or a converter
• A Switch: Connects two sources (HDMI or VGA)
• A Converter: Applies receivers with different interface (DVI, DisplayPort, or HDMI)
Supports RS-232 channel transmission or command mode for source switch control
Compatible Receivers – VE2812R , VE1812R , VE812R , VE814AR , VE811R , VE801R , VE802R , VE601R , VE901R , VE2812PR or future ATEN HDBaseT Receivers
Plug-and-play
LED indication of sources and device status
Built- in 8KV / 15 KV ESD protection

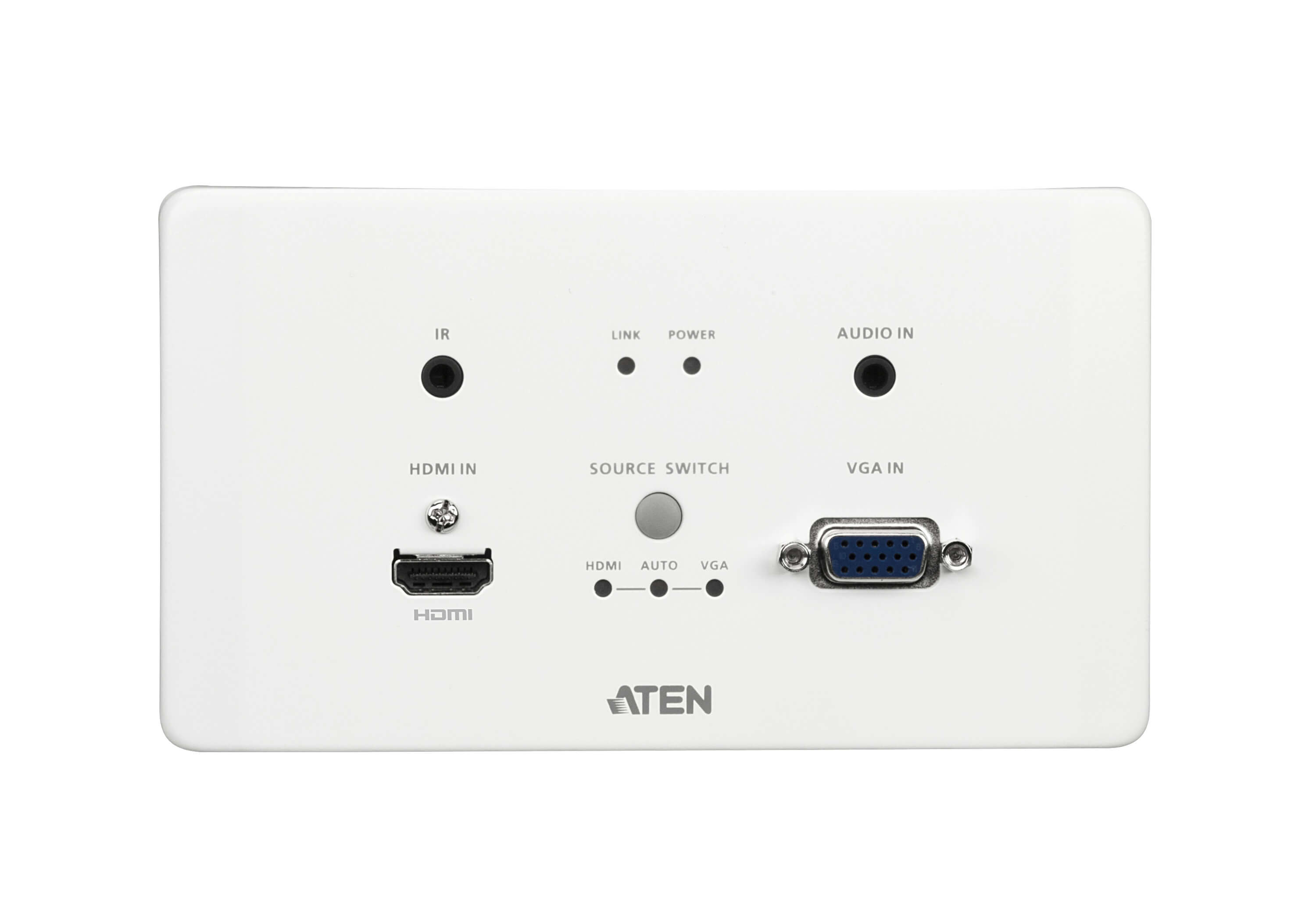

Video Input
Interfaces
1 x HDMI Type A Female (Black)
1 x HDB-15 (VGA) Female (Blue)
Impedance
HDMI: 100 Ω
HDB-15 (VGA): 75 Ω
Max. Distance
HDMI: 3 m
HDB-15(VGA): 10m
Video
Max. Data Rate
10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock
340 MHz
Compliance
HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance
HDMI: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
VGA: Up to 1920x1200 & 1600x1200@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1920x1080@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input
1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Green)
Control
RS-232
Connector: 1 x Terminal Block, 3 pole (Green)
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
IR
1 x Mini Stereo Jack Female (Black)
Switches
Video Input Port Selection
1 x Push Button - HDMI, VGA and AUTO

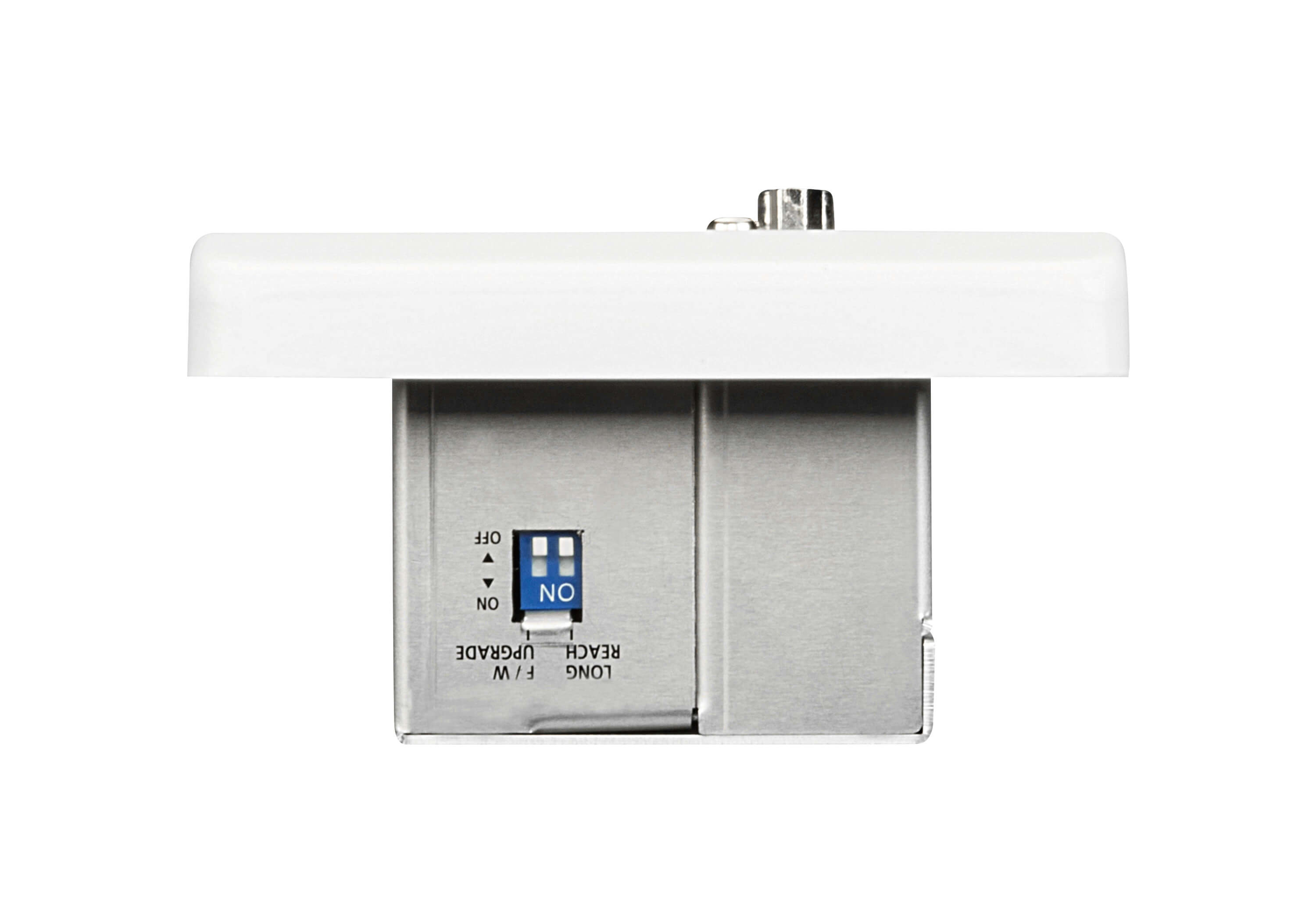

Long Reach Mode Switch
1 x Slide Switch - ON/OFF
Firmware Upgrade
1 x Slide Switch - ON/OFF

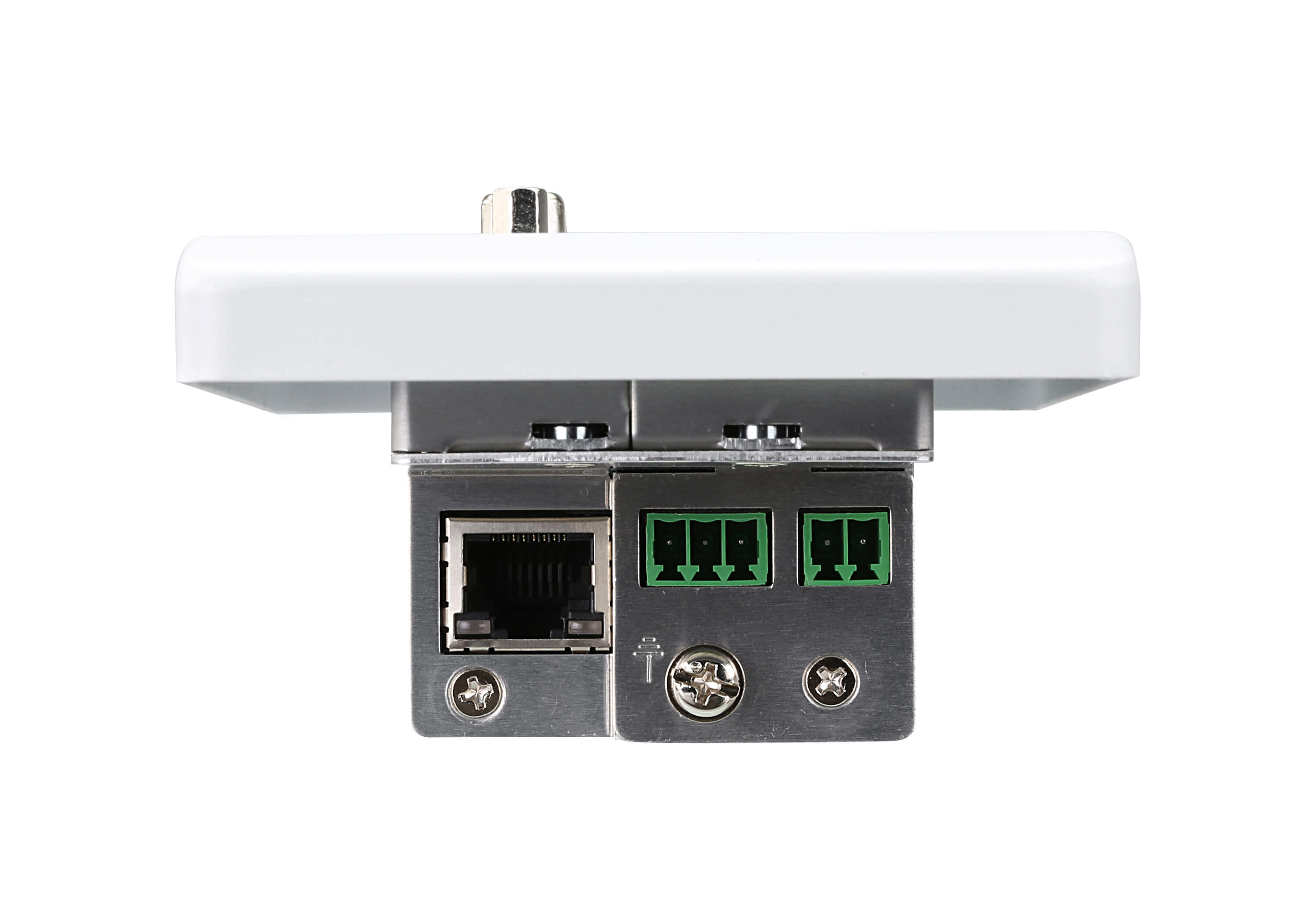

Connectors
Unit To Unit
1 x RJ-45 Female
Power
1 x Terminal Block, 2 pole (Green) or
1 x RJ-45 Female (POH)
Power Consumption
DC5V:3.14W:15BTU/h
POH:3.93W:18BTU/h
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature
0 - 40°C
Storage Temperature
-20 - 60°C
Humidity
0 - 80% RH, Non-Condensing

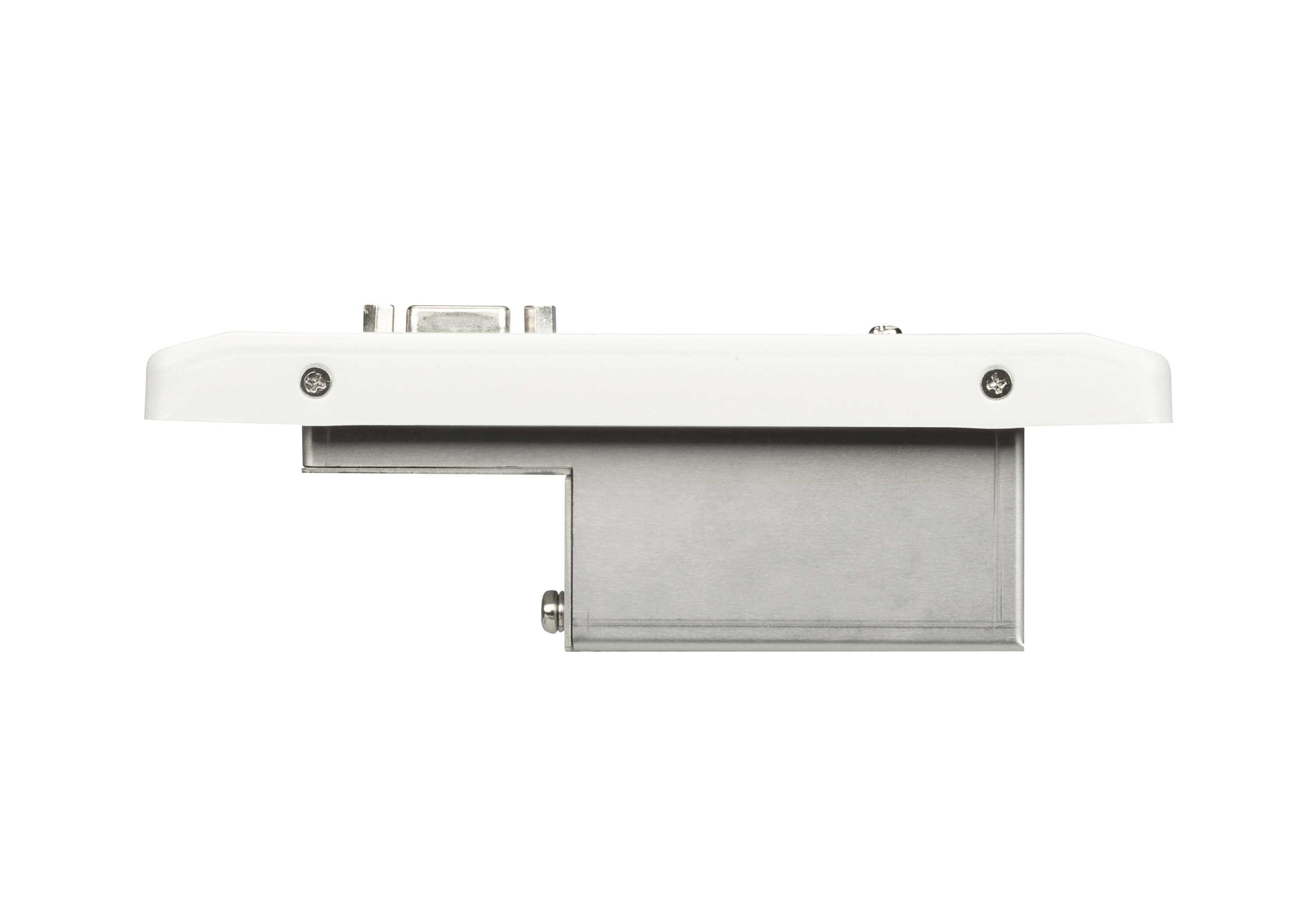

Physical Properties
Housing
Metal
Weight
0.30 kg ( 0.66 lb )
Dimensions (L x W x H)
5.00 x 10.80 x 5.17 cm
(1.97 x 4.25 x 2.04 in.)
Faceplate Dimensions (L x W x H)
8.60 x 15.10 x 1.35 cm
(3.39 x 5.94 x 0.53 in.)
Package Contents
1x VE2812AEUT HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH
1x 3 Pin RS-232 Terminal Block
1x 2 Pin Power Terminal Block
1x Mounting Kit
1x Power Adapter
1x User Instructions
