Connects 2 HDMI sources to any 2 HDMI displays
Max. Data Rate 18.0 Gbps (6.0 Gbps Per Lane)
Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR
Audio de-embedder – HDMI audio can be extracted to stereo or Lineout audio
Supports Dolby True HD and DTS HD Master Audio
Auto switching – automatically detects and switches to a new source once connected (Default: off)
Multiple Control Methods – system management via front-panel pushbuttons, IR remote, and RS-232 serial control
Long-distance transmission up to 5 meters
HDMI (3D, 4K, Deep Color); HDCP 2.2 Compatible
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
EDID Expert™ – selects optimum EDID settings for smooth power-up,high-quality display and use of the best video resolution across different screens
Supports ATEN’s Lock Pro™ HDMI cable lock for secure HDMI cable connections
All metal casing
Firmware upgradable
Rack mountable

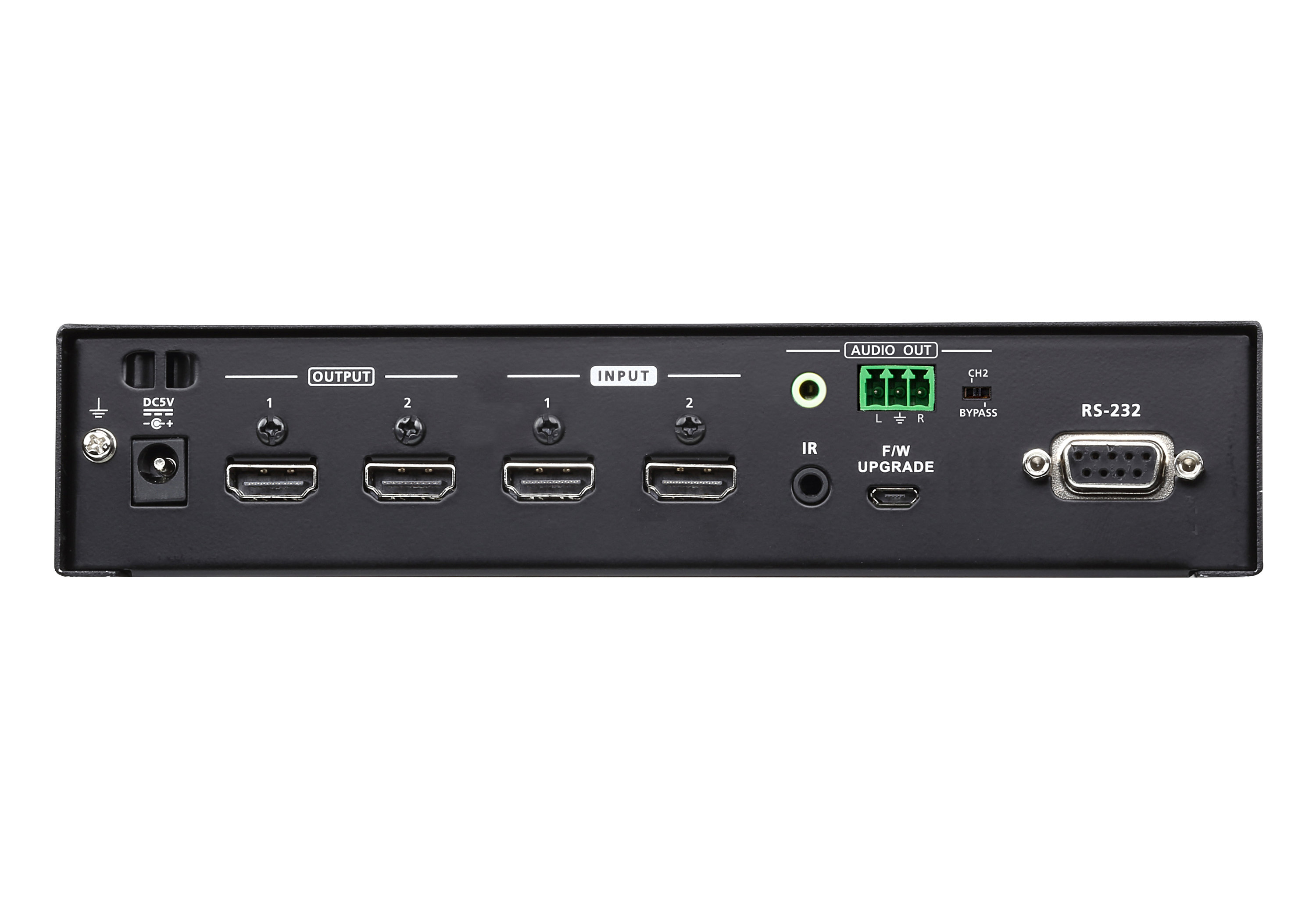

Video Input
Interfaces
2 x HDMI Type A Female (Black)
Impedance
100 Ώ
Max. Distance
5.0 m
Video Output
Interfaces
2 x HDMI Type A Female (Black)
Impedance
100 Ώ
Max. Distance
5.0 m
Video
Max. Data Rate
18.0 Gbps (6.0 Gbps Per Lane)
Max. Pixel Clock
600 MHz
Compliance
HDMI (3D, 4K, Deep Color)
HDCP 2.2 Compatible
Consumer Electronics Control (CEC)
Max. Resolution
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Distance
Up to 5.0 m
Audio
Output
1x Mini Stereo Jack Female; 1x Captive Screw Connector, 3 pole
Control
USB
1 x Micro USB
F/W upgrade
RS-232
Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR
1 x Mini Stereo Jack Female (Black)
EDID Settings
EDID Mode: Default / Port1 / Remix
Connectors
Power
1 x DC Jack (Black)
Power Consumption
DC5V:2.47W:11BTU
Environmental
Operating Temperature
0-40°C
Storage Temperature
-20 - 60°C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
0.60 kg ( 1.32 lb )
Dimensions (L x W x H)
20.00 x 7.60 x 4.20 cm
(7.87 x 2.99 x 1.65 in.)
