Connects any of 8 HDMI sources to any of 8 HDMI displays
Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
Supports HDR 10 +
Multiple Control Methods – system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
View and control via ATEN Video Matrix Control App in a swift and agile way
EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
Signaling rates up to 6 Gbits for flawless true 4K output
Supports Dolby True HD and DTS HD Master audio
HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
Supports Consumer Electronics Control (CEC)
Power-on Detection – switches to the next powered-on source when one source is powered off
ESD protection for HDMI
Supports ATEN’s LockPro™ HDMI cable lock for secure HDMI cable connections
Firmware upgradeable
Rack mountable (1U design)
Video Input

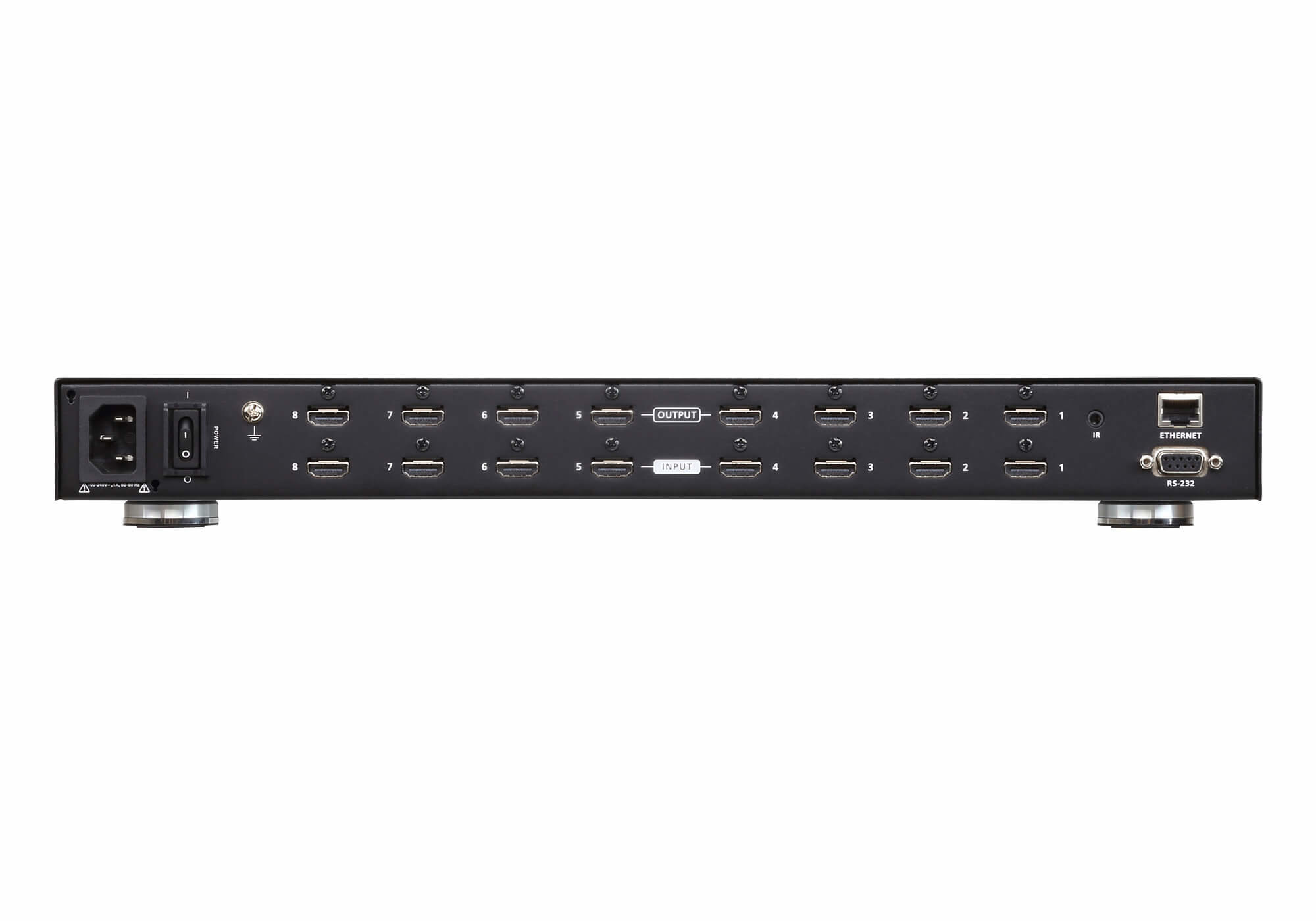

Interfaces
8 x HDMI Type A Female (Black)
Impedance
100 Ω
Max. Distance
5.0 m / 4K@60Hz (4:4:4)
Video Output
Interfaces
8 x HDMI Type A Female (Black)
Max. Distance
5m / 4K@60Hz (4:4:4)
15m / 1920 x 1200
Impedance
100 Ω
Video
Max. Pixel Clock
600 MHz
Max. Resolution
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Data Rate
18 Gbps( 6 Gbps Per Lane)
Compliance
HDMI (3D, 4K, Deep Color)
HDCP 2.2 Compatible
Consumer Electronics Control (CEC)
Control
RS-232
Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR
1 x Mini Stereo Jack Female (Black)
Ethernet
1 x RJ-45 Female
EDID Settings
EDID Mode: Default / Port 1 / Remix / Customized
(EDID Wizard Support)
Environmental
Operating Temperature
0-40°C
Humidity
0 - 80% RH, Non-Condensing
Storage Temperature
-20 - 60°C
Physical Properties
Weight
3.99 kg ( 8.79 lb )
Housing
Metal
Dimensions (L x W x H)
43.24 x 26.23 x 4.40 cm
(17.02 x 10.33 x 1.73 in.)
Connectors
Power
1 x 3-Prong AC Socket
Carton Lot
1 pc
Power Consumption
AC110V:38.1W:179BTU
AC220V:37.8W:177BTU
Power
Maximum Input Power Rating
100-240 VAC; 50-60 Hz; 1.0A
Package Contents

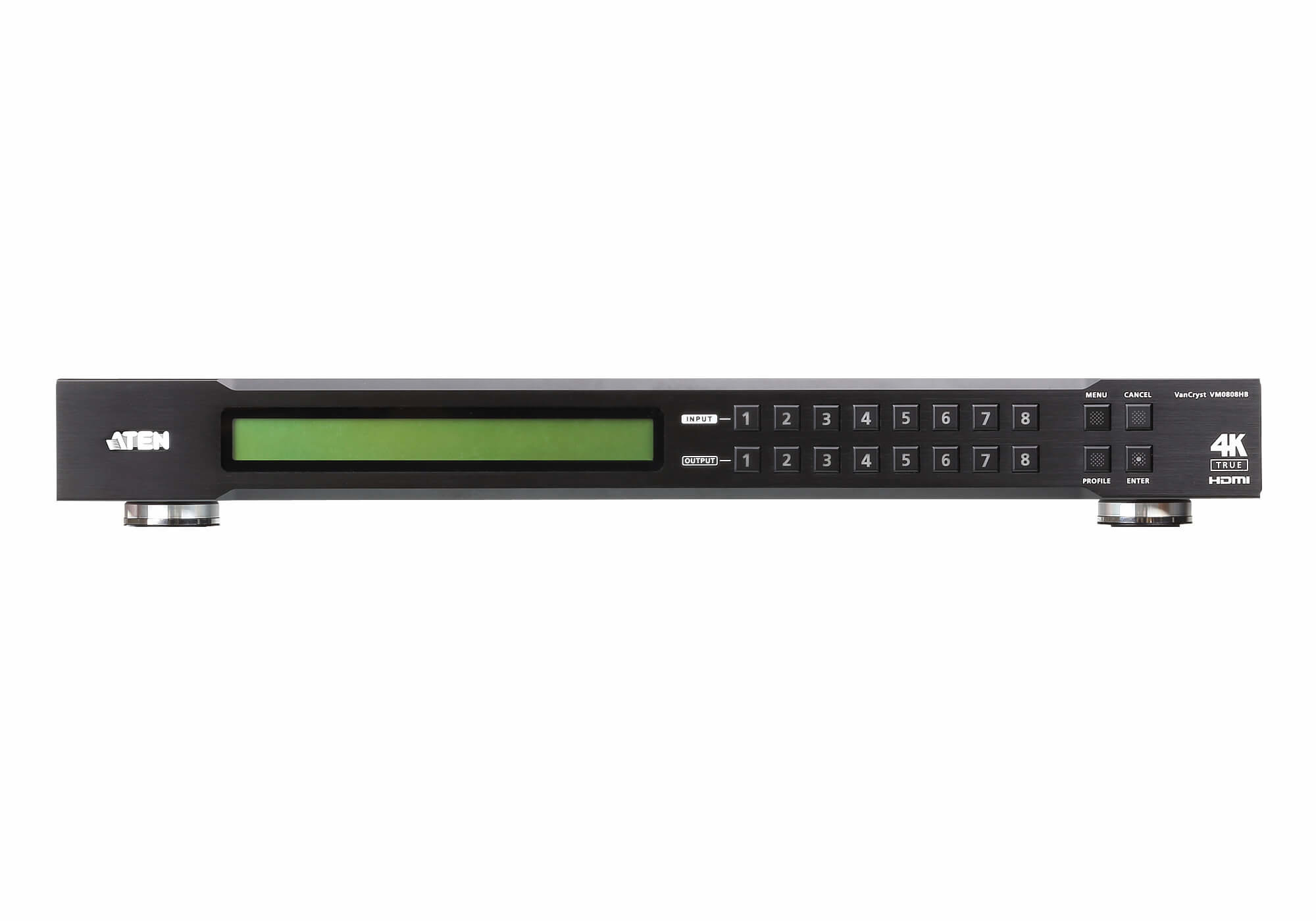

1x VM0808HB 8 x 8 True 4K HDMI Matrix Switch
1x Power Cord
1x IR Remote Control
1x IR Receiver
1x Rack Mounting Kit
1x User Instructions
