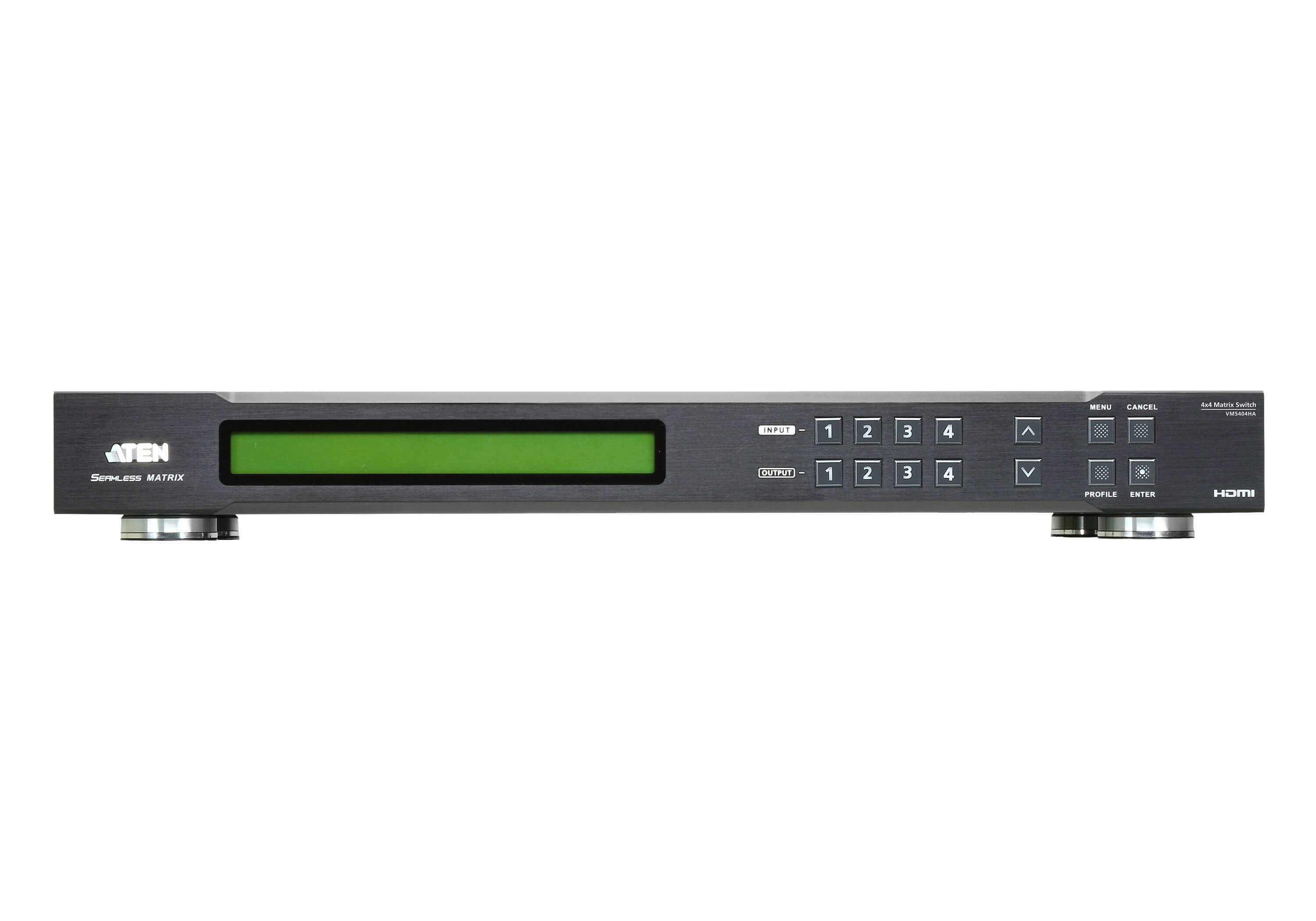

Routes any of 4 HDMI sources to any of 4 HDMI displays
Local HDMI output – enables previewing of up to 4 video sources in a multi-view window
Multiple system configuration methods including front panel pushbuttons / RS-232 / Ethernet (Telnet / Web GUI) connection, ATEN Video Matrix Control app, and ATEN Control System
Device status can be viewed and controlled via ATEN Video Matrix Control App
Video Wall functionality via intuitive web GUI* allows for customization of up to 8 layouts for any type of video walls
Built-in scaler automatically converts input resolutions for optimal appearance on the display
FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
ATEN Seamless Switch technology* – adopts FPGA to unify video formats so as to provide continuous video streams, real-time switching, and stable signal transmission
EDID Expert – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
Audio enabled; HDMI audio can be extracted to stereo audio
HDMI (3D, Deep color); HDCP 1.4
Supports Dolby True HD and DTS HD Master audio
Supports Consumer Electronics Control (CEC)
ESD protection for HDMI
Firmware upgradeable
Rack mountable (1U design)
*Note:
1. If Seamless Switch ing is enabled, the video output will not display 3D, Deep Color or interlace (i.e., 1080i) resolutions. To make these features available, disabling Seamless Switch ing is a must.
2. Videos may not display within range when Seamless Switch or Video Wall is enabled, in which case please adjust the display settings on your device.

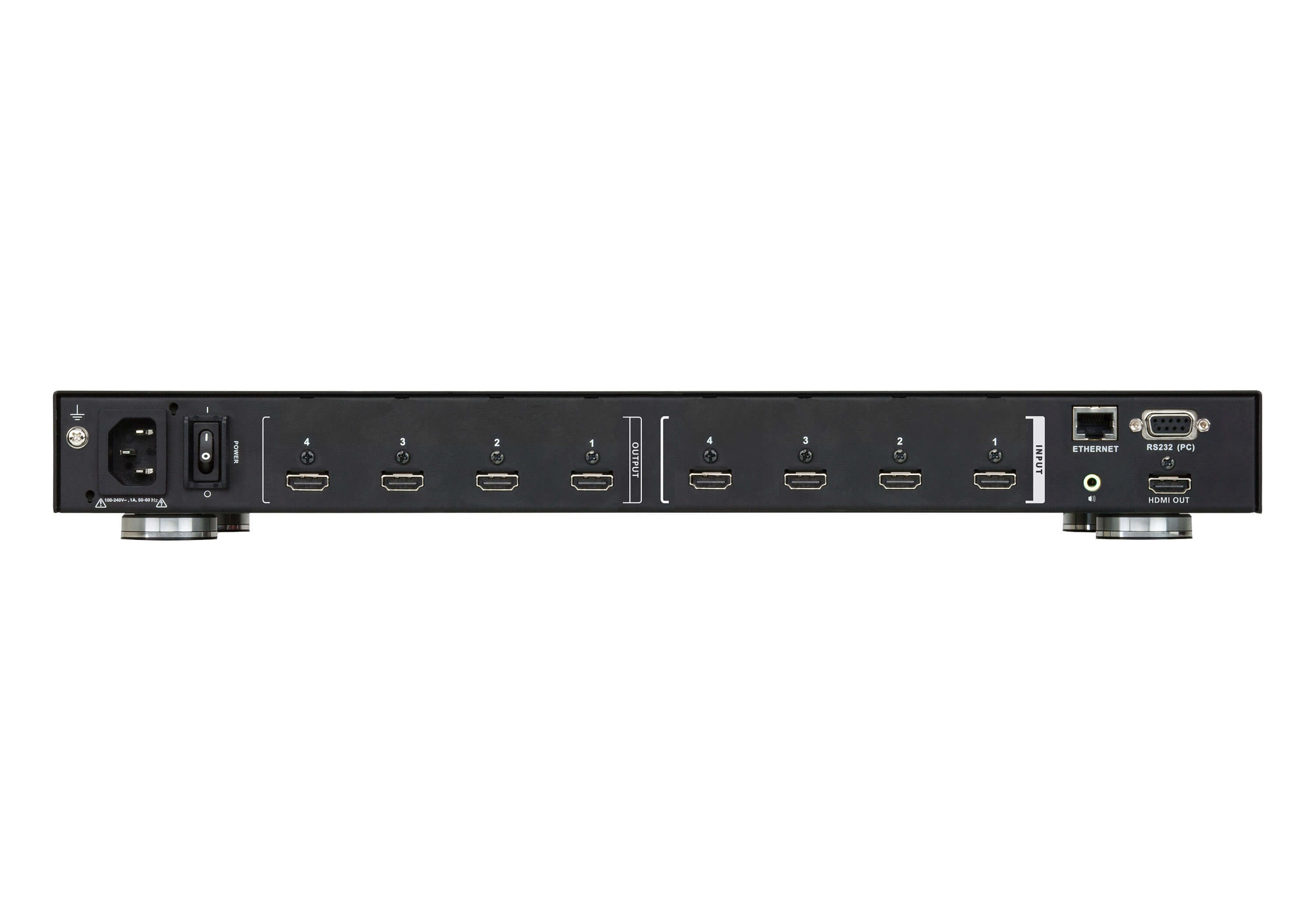

Video Input
Interfaces
4 x HDMI Type A Female (Black)
Impedance
100 Ω
Max. Distance
5.0 m
Video Output
Interfaces
4 x HDMI Type A Female (Black)
(Array Mode): 1 x HDMI Type A Female (Black)
Impedance
100 Ω
Max. Distance
15 m
Video
Max. Data Rate
6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock
225 MHz
Compliance
HDMI (3D, Deep Color)
HDCP 1.4 Compatible
Consumer Electronics Control (CEC)
Max. Resolution
Up to 1080p
Max. Distance
Up to 15 m
Audio
Output
1 x Mini Stereo Jack Female (Green)
Control
RS-232
Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
Ethernet
1 x RJ-45 Female
EDID Settings
EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Connectors
Power
1 x 3-Prong AC Socket
Power
Maximum Input Power Rating
100-240 VAC; 50-60 Hz; 1.0A
Power Consumption
AC110V:35.7W:167BTU
AC220V:34.9W:164BTU
Environmental
Operating Temperature
0-40°C
Storage Temperature
-20 - 60°C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
5.12 kg ( 11.28 lb )
Dimensions (L x W x H)
43.24 x 37.82 x 4.40 cm
(17.02 x 14.89 x 1.73 in.)
Package Contents
1x HDMI Matrix Switch with Scaler
1x power cord
1x mounting kit
1x user instructions
