DahuaStok kodu: 37409

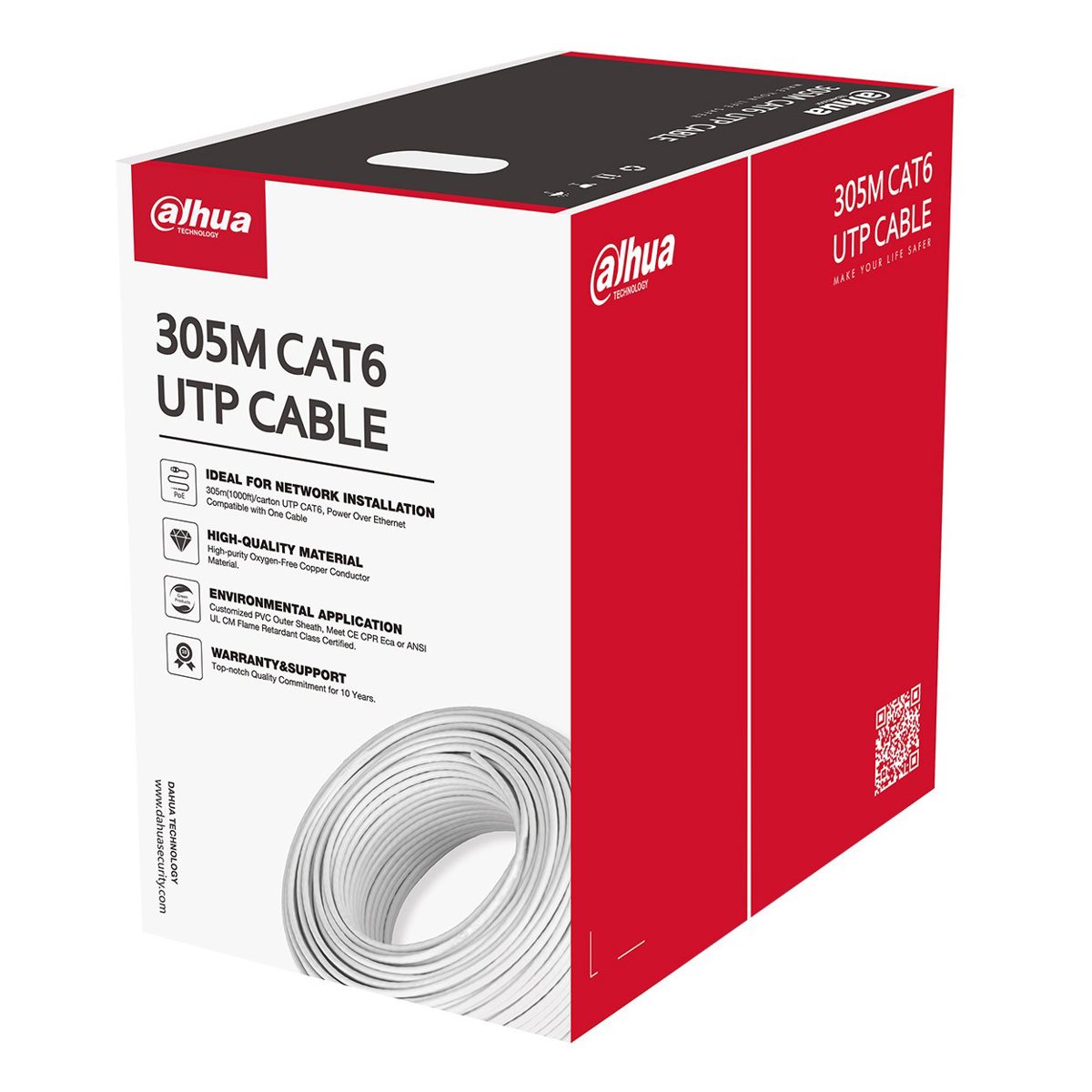

Dahua PFM920I-6UN-C UTP CAT6 305M 0.53 OFC+PVC+Flame Retard İç Ortam Kablo Mavi

10.543,06 TL

KDV hariç 8.785,88 TL · %20 KDV

Stokta yok

  • Havale/EFT
  • 14 gün içinde iade
  • Yurtiçi Kargo · 377,00 TL
Kurumsal/bayi fiyatı için B2B paneline giriş yapın
Fiyat düşünce haber ver

Cat5E / Cat6 / Cat6A / Cat7 Kablolar grubunda yer alan Dahua PFM920I-6UN-C UTP CAT6 305M 0.53 OFC+PVC+Flame Retard İç Ortam Kablo Mavi için teknik özet aşağıdadır. Kurumsal alımlarda adet ve fatura bilgisini teklif formunda belirterek fiyat teklifi alabilirsiniz.

Teknik özet

  • Uzunluk: 305 m
  • Kablo Tipi: Makara (konnektörsüz)
  • Kılıf Malzemesi: PVC
  • Kablo Türü: İç Ortam CAT6 - CCA
  • Kablo Çapı: 23 AWG 0.53 mm Saf Bakır
  • Kablo Uzunlukları: 305 Mt
  • İletken: Bakır
  • Kablo Kategorisi: CAT6
  • Zırh Tipi: UTP

Kullanım alanı

Yapısal kablolama projeleri.

Seçim ölçütleri

  • Kategoriyi (CAT5e/CAT6/CAT6A) hedeflenen hıza ve mesafeye göre seçin.
  • İç/dış ortam ve kılıf tipini (PVC/LSZH) kurulum yerine göre belirleyin.

Üretici bilgisi

Structure
Conductor Material OFC(oxygen free copper)
Structure 4P*0.53±0.01mm
Insulation Material HDPE
Min. average thickness 0.21mm
Diameter 0.95mm0.05mm
Color(4 Pairs) Orange, white/orange; green, white/green;
blue, white/blue; brown, white/brown
Rip cord Yes
Jacket Material PVC, meet the requirement of CPR E class PVC, meet the requirement of UL CM class
Min. average thickness 0.40mm
Diameter 6.0±0.50mm
surface Smooth, full and tight
Color White
General Length 305m(1000.66ft)
N.W. 11.25kg(24.8lb)
Packaging dimension 412mmx412mmx215mm(16.22”x16.22”x8.46”)
Weight (with packaging) 12.75kg(28.11lb)
Mechanical properties
Insulation Tensile strength ?16MPa
Elongation at break ?300%
Peeling property No damage to insulation or conductor
Jacket Tensile strength Before aging: ?13.5MPa
After aging: ?12.5MPa
Before aging: ?13.5MPa
Retention rate of tensile strength after aging: ?85%
Elongation at break Before aging: ?150%
After aging: ?125%
Before aging: ?150%
Retention rate of elongation at break after aging: ?50%
Aging condition 100?*24h*7d
Peeling property No damage to insulation, cold bending (-20C *4h), the outer diameter of the cable is 8 times, without cracking. No damage to insulation, cold bending (-15C *4h), the outer diameter of the cable is 8 times, without cracking.
Electrical performance (20?)
Characteristic impedance (1-250MHz) 100±15?
DC resistance ?9.38?/100m
Max. unbalance rate of line pairs’ direct current ?5%
Time delay ?45ns/100m
Max. mutual capacitance 5.6nF/100m
Min. insulation resistance 5000M?·km

Kurumsal ve proje alımlarında adet, teslim yeri ve fatura bilgisini teklif formunda belirterek fiyat teklifi alabilirsiniz.
