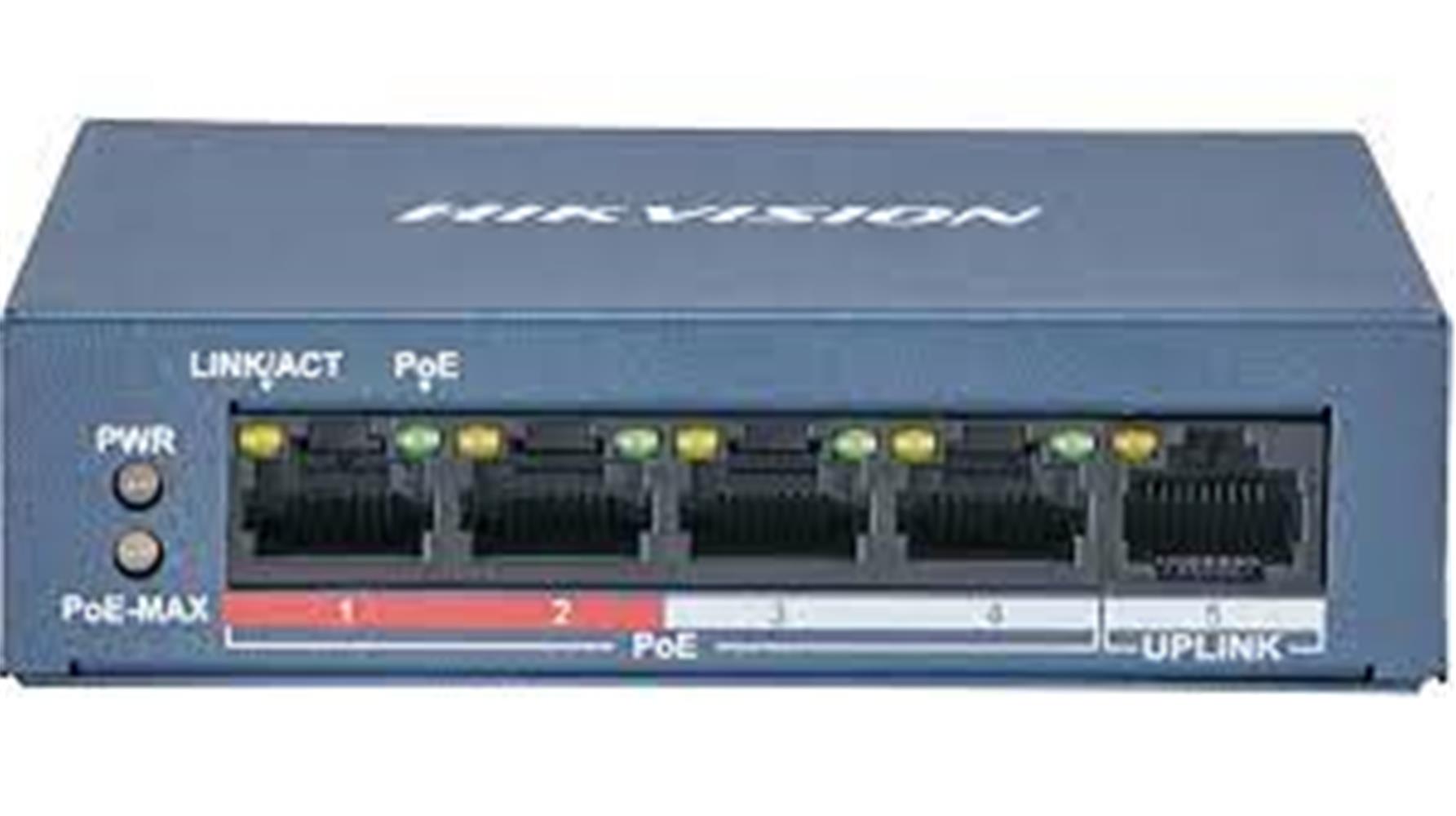

Hilook NS-0105P-35B 5 Port Megabit 4 Port PoE 35W +1 Port Megabit UplinkSwitch

• General
• ShellMetal material, fan-free design
• Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Power Supply48 VDC, 0.8 A
• Storage Humidity5% to 95% (no condensation)
• Net Weight0.2 kg (0.4 lb)
• Gross Weight0.48 kg (1.06 lb)
• Dimension (L × H × D)105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
• Operating Humidity5% to 95% (no condensation)
• Power Consumption In Idle3 W

• Network Parameters
• Port Number4 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port
• Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
• StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Forwarding ModeStore-and-forward switching
• Working ModeStandard mode (default); Extend mode
• MAC Address Table1 K
• Switching Capacity1 Gbps
• Packet Forwarding Rate0.744 Mpps
• Internal Cache448 Kbits
• High Priority PortsPorts 1 to 2
• Ports For Long-Distance TransmissionPorts 1 to 4

• PoE Power Supply
• PoE StandardIEEE 802.3af, IEEE 802.3at
• PoE Power PinSupports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
• PoE PortPorts 1 to 4
• Max. Port Power30 W
• PoE Power Budget35 W
• Max. Power Consumption38 W
