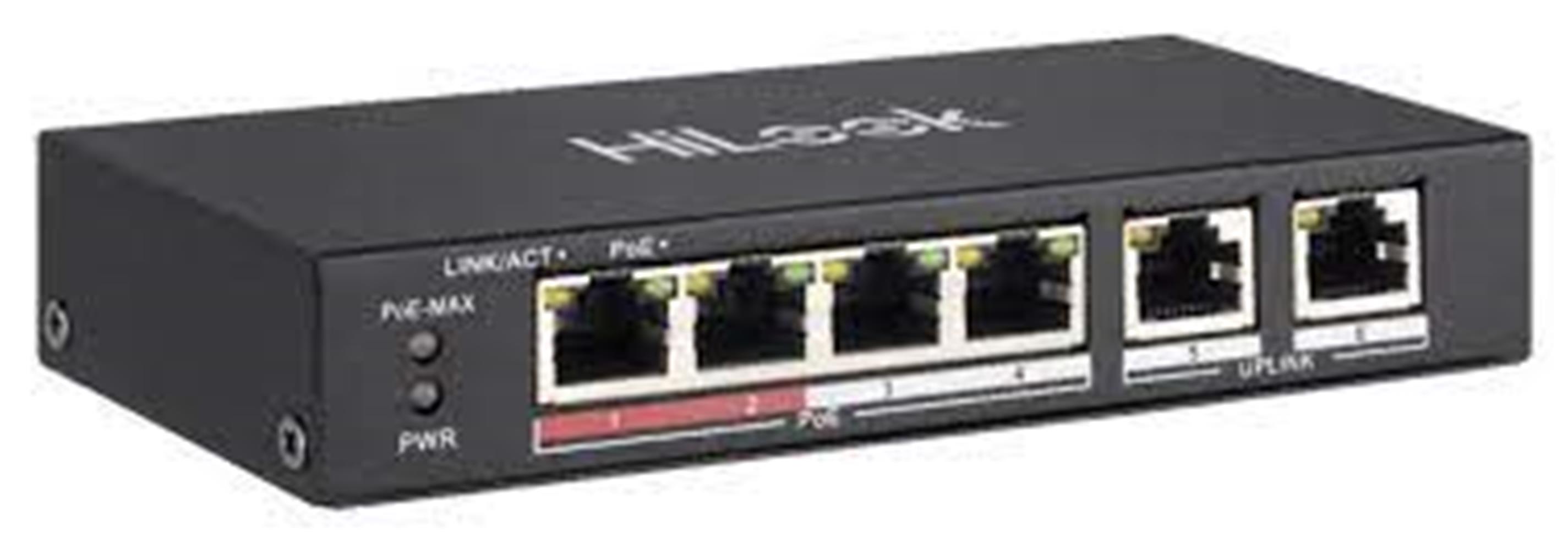

Hilook NS-0106P-35 4 Port PoE, 35W, +2 Port Megabit Uplink Switch

• oE Power Supply
• PoE StandardPorts 1 to 4: IEEE 802.3af, IEEE 802.3at
• PoE Power Pin

  Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power

  supply simultaneously.

• PoE PortPorts 1 to 4
• Max. Port PowerPorts 1 to 4: 30 W
• PoE Power Budget35 W

• Network Parameters
• Port Number4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports
• Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
• StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Forwarding Mode

  Store-and-forward switching

• High Priority PortsPorts 1 and 2
• Ports For Long-Distance TransmissionPorts 1 to 4
• MAC Address Table4 K
• Switching Capacity1.6 Gbps
• Packet Forwarding Rate0.8928 Mpps
• Internal Cache768 Kbits

• Dialing Function
• Long RangePorts 1 to 4: up to 250m.

• General
• Shell

  Metal material, fan-free design

• Gross Weight0.52
• Net Weight0.265
• Dimension (L × H × D)145 mm × 68.45 mm × 25.6 mm (5.71” × 2.69” × 1.01”)
• Operating Temperature

  -10°C to 40°C (14°F to 104°F)

• Storage Temperature-40°C to 85°C (-40°F to 185°F)
• Operating Humidity

  5% to 95% (no condensation)

• Storage Humidity5% to 95% (no condensation)
• Power Supply

  48 VDC, 0.8 A

• Power Consumption In Idle< 5 W
• Power Souce38 W
• Max. Power Consumption38 W

• Approval
• EMC

  FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-

  3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM

  (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)

• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• Chemistry

  CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC)

  No 1907/2006)
