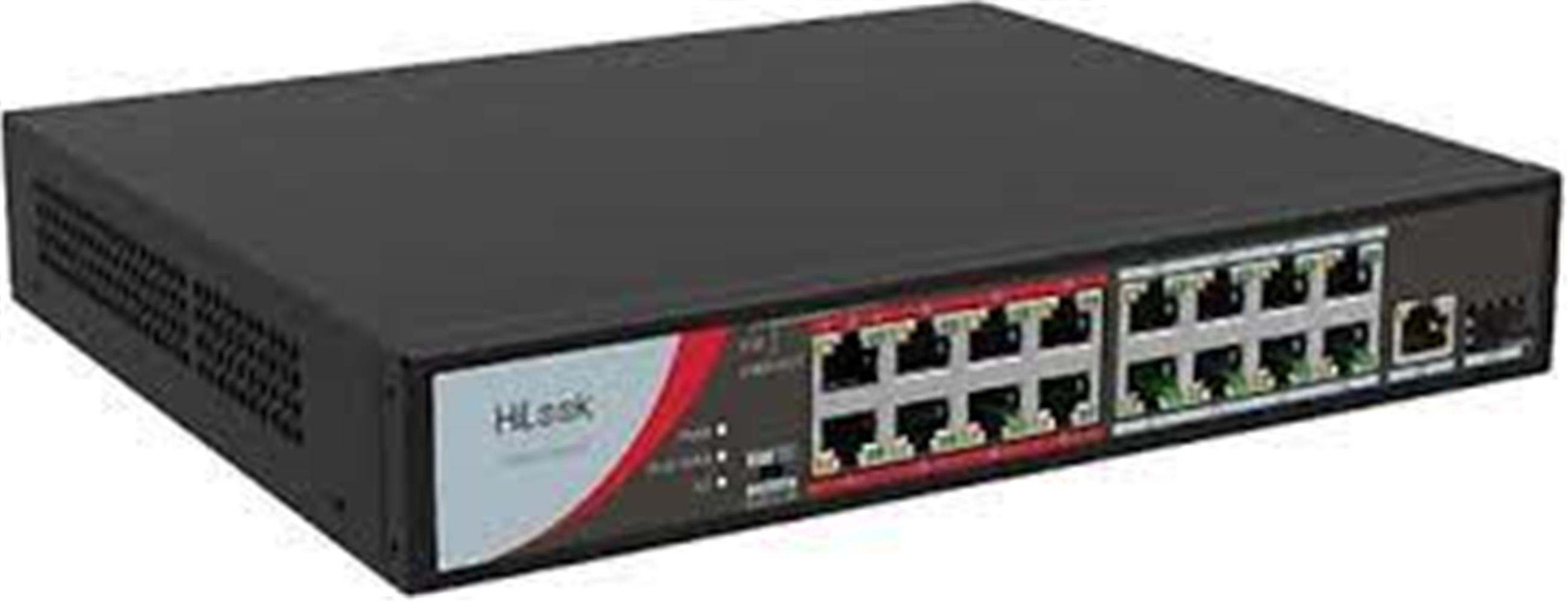

Hilook NS-0318P-130(B) 16 Port 10/100 Poe Switch 1x1000 Mbps RJ45 Port, 1x1000 Mbps SFP

• General
• ShellMetal material
• Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Power Supply100 to 240 VAC, 50/60 Hz, Max. 2.5 A
• Storage Humidity5% to 95% (no condensation)
• Net Weight1.8 kg (4.0 lb)
• Gross Weight2.58 kg (5.69 lb)
• Dimension (L × H × D)266 mm × 44.5 mm × 220.8 mm (10.5” × 1.8” × 8.7”)
• Operating Humidity5% to 95% (no condensation)
• Power Consumption In Idle20 W

• Network Parameters
• Port Number16 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port
• Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
• StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Forwarding ModeStore-and-forward switching
• Working ModeStandard mode (default); Extend mode
• MAC Address Table4 K
• Switching Capacity7.2 Gbps
• Packet Forwarding Rate5.356 Mpps
• Internal Cache2.75 Mbits
• High Priority PortsPorts 1 to 8
• Ports For Long-Distance TransmissionPorts 9 to 16

• PoE Power Supply
• PoE StandardIEEE 802.3af, IEEE 802.3at
• PoE Power Pin

  Ports for long-distance transmission (9-16) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.

  Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.

• PoE PortPorts 1 to 16
• Max. Port Power30 W
• PoE Power Budget130 W
• Max. Power Consumption150 W
