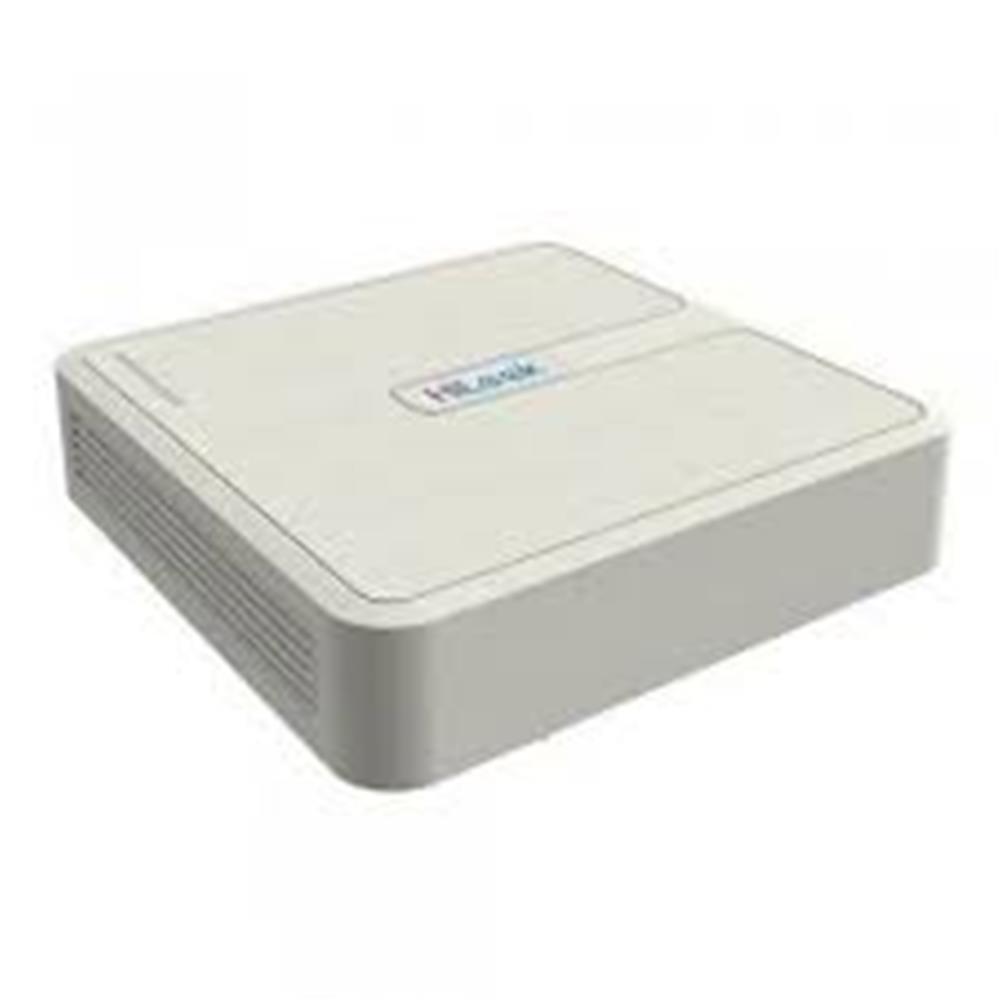

Hilook NVR-108H-D/8P 8 Kanal Poe Nvr kayıt Cihazı

• 8 Kanal IP Kamera Girişi, H-265+ Sıkıştırma Formatı Desteği, 1 Adet 6TB HDD Desteği, 1x 10/100 Network Kartı, 60MB Gelen, 60MB Giden Bant Genişliği, 4MP IP Kamera Desteği, 1x HDMI + 1x VGA Video Çıkışı.
• Video and Audio
• IP Video Input

  8-ch

  Up to 6 MP resolution

• Incoming Bandwidth60 Mbps
• Outgoing Bandwidth60 Mbps
• HDMI Output1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output ModeHDMI/VGA simultaneous output

• Decoding
• Decoding FormatH.265+/H.265/ H.264+/H.264
• Recording Resolution6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous playback4-ch
• Decoding Capability4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
• Stream TypeVideo, Video & Audio

• Network
• Remote Connection16
• Network ProtocolTCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™
• Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface

• PoE
• Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power≤ 75 W
• StandardIEEE 802.3 af/at

• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 6 TB capacity for each disk
• Alarm In/OutN/A
• USB InterfaceRear panel: 2 × USB 2.0

• General
• Power Supply48 VDC, 1.8 A
• Consumption≤ 10 W (without HDD and PoE off)
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)

  285 × 210 × 48 mm(11.2" × 8.3\" × 1.9\")

• Weight≤ 1 kg (without HDD, 2.2 lb.)

• Certification
• CEEN50130-4, EN 61000-3-2,EN 61000-3-3
