Fiziksel Port
- 1-port veri + güç girişi
- 2-port veri + güç çıkışı
3-port 10 / 100 / 1000BASE-T Gigabit RJ45 arayüz
Power over Ethernet
- IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD destekler
- PoE girişi 30.8 watt güç beslemesi yapar
- IEEE 802.3af/IEEE 802.3at Power over Ethernet end-span PSE destekler

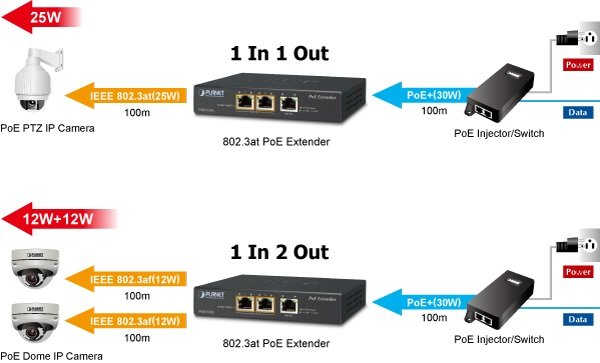

- Maksimum 2 IEEE 802.3af/802.3at cihaza güç beslemesi yapabilir
- Çıkışlara bağlı cihazlara 25 watt güç beslemesi yapabilir
- Elektrikle beslenen cihazları (powered device (PD)) otomatik algılar
1-port veri + güç girişi
2-port veri + güç çıkışı

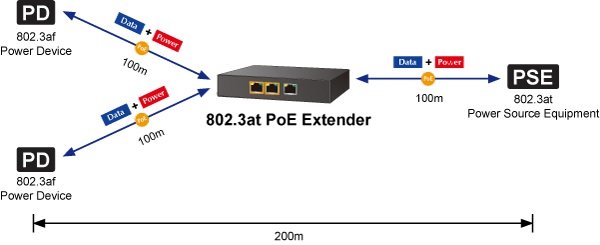

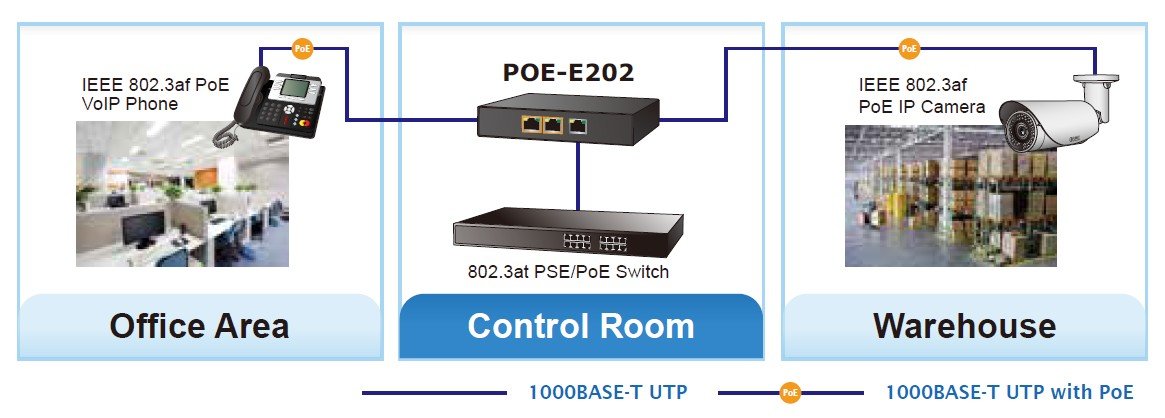

PoE sinyalini ek olarak 100 metre ileriye taşır
Ethernet ve PoE güç sinyallerini uzaktaki cihazlara ulaştırır
Layer 2 Özellikler
10/100/1000Mbps auto-negotiation ve auto MDI/MDI-X özelliğine sahip
2K MAC addres kapasitesine sahip
10K iumbo paket desteği
IEEE 802.1Q VLAN transparency
Store-and-Forward mod destekler
Full duplex çalışırken IEEE 802.3x akış kontrolü özelliği ve half duplex çalışırken backpressure özelliğine sahip
Otomatik adres öğrenme ve adres aging özelliği
CSMA/CD protokolünü destekler
Şasi ve Kurulum
Harici güç kablosu gerektirmez
Metal şasi, kompakt, masaüstü boyut
Duvara monte edilebilir, Tak & Çalıştır özelliği
0 ~ 50 derece C çalışma ısısına sahip
Interfaces
PoE IN
1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at PoE “ Data + DC power ” in
auto MDI/MDI-X, auto-negotiation RJ45 connector
PoE OUT
2 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE “ Data + DC power ” out
auto MDI/MDI-X, auto-negotiation RJ45 connector
Power over Ethernet
PoE Standard
“PoE In” Port
IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD class 4 PD
Per “PoE Out” Port
IEEE 802.3at Power over Ethernet Plus end-span PSE
IEEE 802.3af Power over Ethernet end-span PSE
PoE Power Supply Type
End-span (Type A)
PoE Power
“PoE In” Port
52~56V DC, max. 30.8 watts
Per “PoE Out” Port
44~55V DC, max. 25 watts
Power Pin Assignment
“PoE In” Port
1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
Per “PoE Out” Port
1/2 (+), 3/6 (-)
Hardware Specifications
Data Rate
10/100/1000Mbps
MAC Address Table
2K
Data Buffer
2Mbits
Switch Architecture
Store-and-Forward
Switch Fabric
6Gbps
Switch Throughput
4.46Mpps @ 64 bytes
Jumbo Frame
10KB
Flow Control
IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
LED Indicators
“PoE In” Port: PoE-in-Use x 1 ( Orange ), LNK/ACT x 1 ( Green )
“PoE Out” Port 1: PoE-in-Use x 1 ( Orange ), LNK/ACT x 1 ( Green )
“PoE Out” Port 2: PoE-in-Use x 1 ( Orange ), LNK/ACT x 1 ( Green )
Protection
ESD (Ethernet): 2KV (TBD)
Surge (EFT for power) : 2KV (TBD)
Enclosure
Metal
Installation
Wall mountable
Dimensions (W x D x H)
140 x 77 x 28 mm
Weight
234g
Power Requirements
IEEE 802.3at compliant with voltage within 52V-56V DC
Power Consumption
1.6 watts/5.5BTU (System on with PoE input)
2.2 watts/7.5BTU (Ethernet full loading without PoE function)
36 watts/122.8BTU (Full loading with PoE function)
Network Cable
10BASE-T: 4-pair UTP Cat. 5 up to 100m (328ft)
100BASE-TX: 4-pair UTP Cat. 5 up to 100m (328ft)
1000BASE-T: 4-pair UTP Cat. 5e, 6, up to 100m (328ft)
EIA/TIA-568 100-ohm STP (100m, 328ft)
Standard Conformance
Regulatory Compliance
FCC Part 15 Class A, CE
Standard Compliance
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3x Flow Control
Environment
Operating
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
