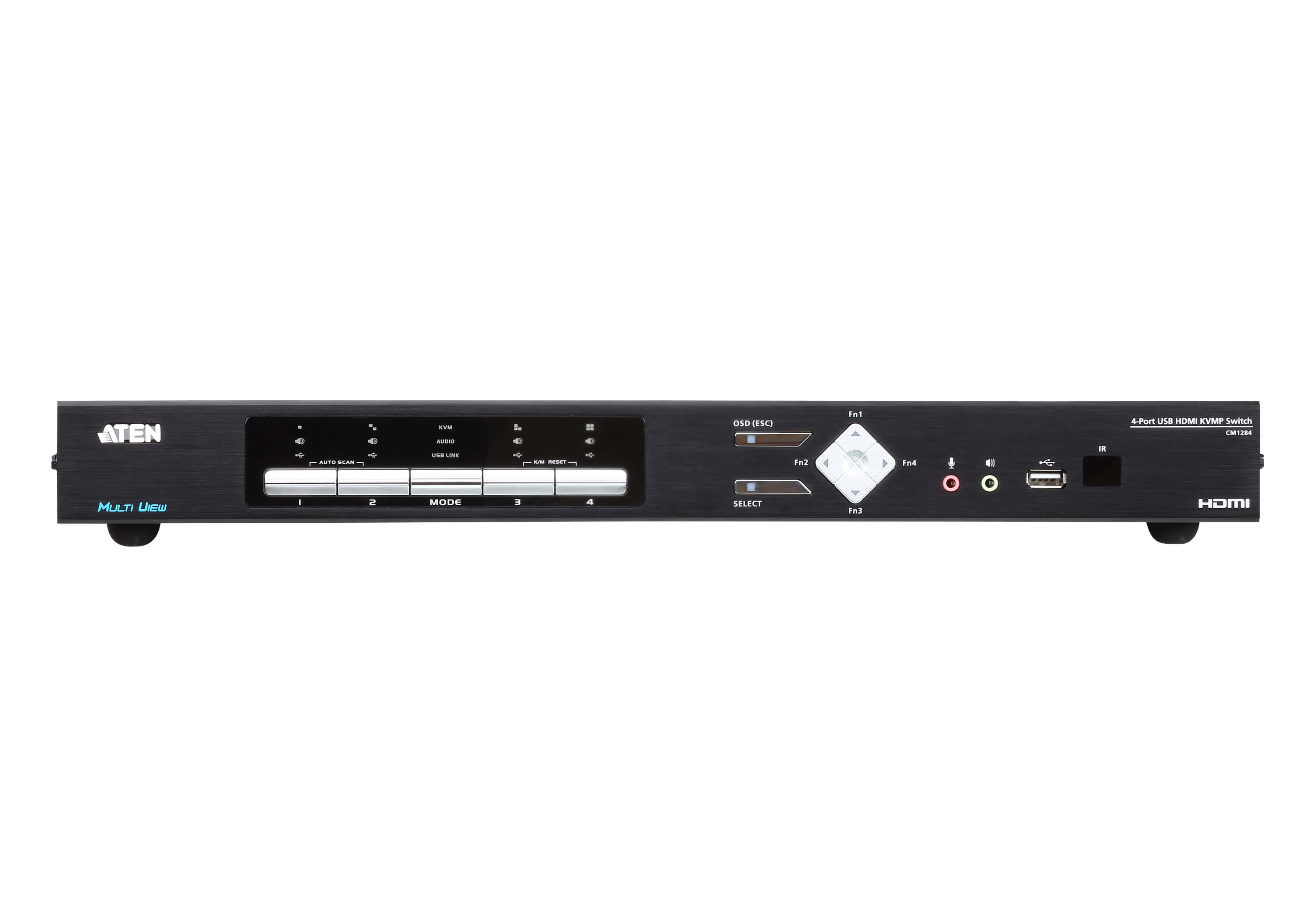

Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)
Features dual output on console side – a multi-view output and a full screen output
Easily resizes and / or reposition any PiP or PbP to suit users’ viewing needs
System configuration via front panel, OSD, IR Remote, and RS-232 commands – display mode and port selection
Supports superior video quality – Up to 4K (4096 x 2160 @ 30 Hz)
Drop down menu – edit display windows and other functions with the mouse and on-screen control panel
Computer selection via front panel pushbutton and hotkey, mouse, and the serial commands*
Boundless Switching – Simply moves the mouse cursor across windows to switch to other video sources
Video DynaSync™ özelliği - Port'lar arasında geçişlerde görüntünün optimize edilmesini sağlar. Sistem açılışlarında görüntüde yaşanabilecek olası problemlerin minimize edilmesini sağlar.
EDID Expert™ – Selects optimum EDID settings for smooth power- up, high-quality display and use of the best video resolution across different screens

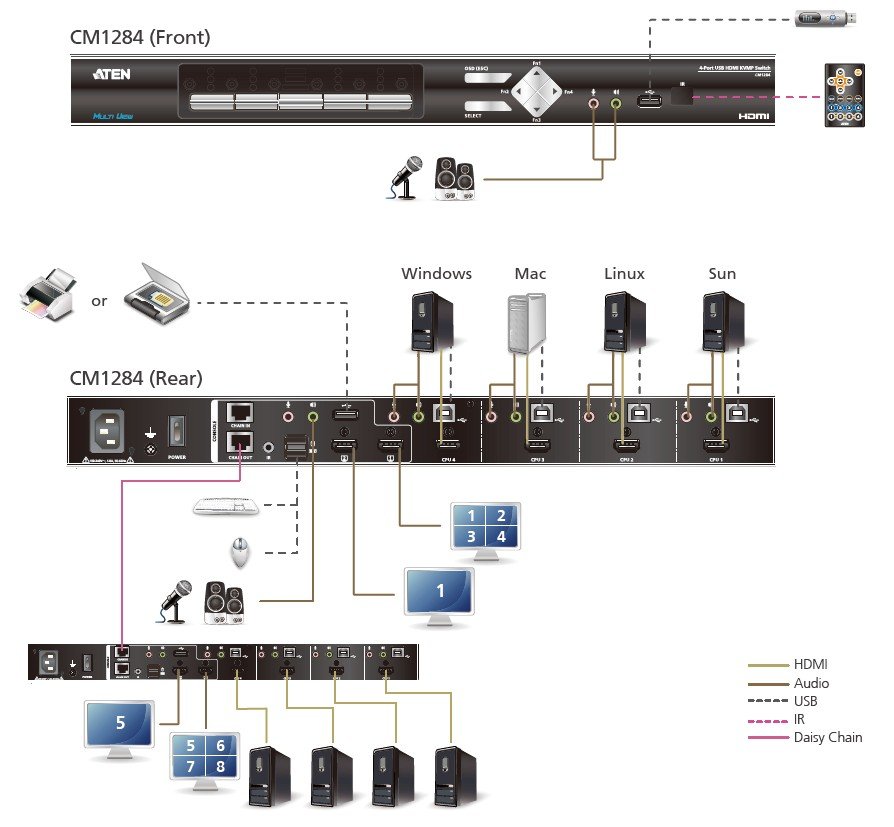

DCC (Daisy Chain Control) – Controls up to 3 additional CM1284 units from a single console
Cascade up to 2 levels – Controls up to 16 computers (with up to 4 x 4 Multi-view mode)
HDCP 1.4 compliant
Console keyboard emulation / bypass feature that support most multimedia keyboards
Console mouse port emulation / bypass feature that supports most mouse drivers and multifunction mice
Independent switching for USB peripheral port, audio function and KVM switch focus
Power on detection
Auto Scan feature
Firmware upgradable via computer’s USB port
Full bass response provides a rich experience for 2.1 channel audio
Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
Hot-pluggable
Supports keyboard combinations via emulation (for Sun / Mac)**
Note:
*Mouse port switching is only workable under mouse emulation mode and is for 3-key USB wheel mouse only
**PC keyboard combinations emulate Mac keyboard. Mac keyboard only work with their own computers
Computer Connections
4
Port Selection
Pushbuttons, Hotkeys, IR Remote Control, On-Screen Display(OSD), RS-232 Commands

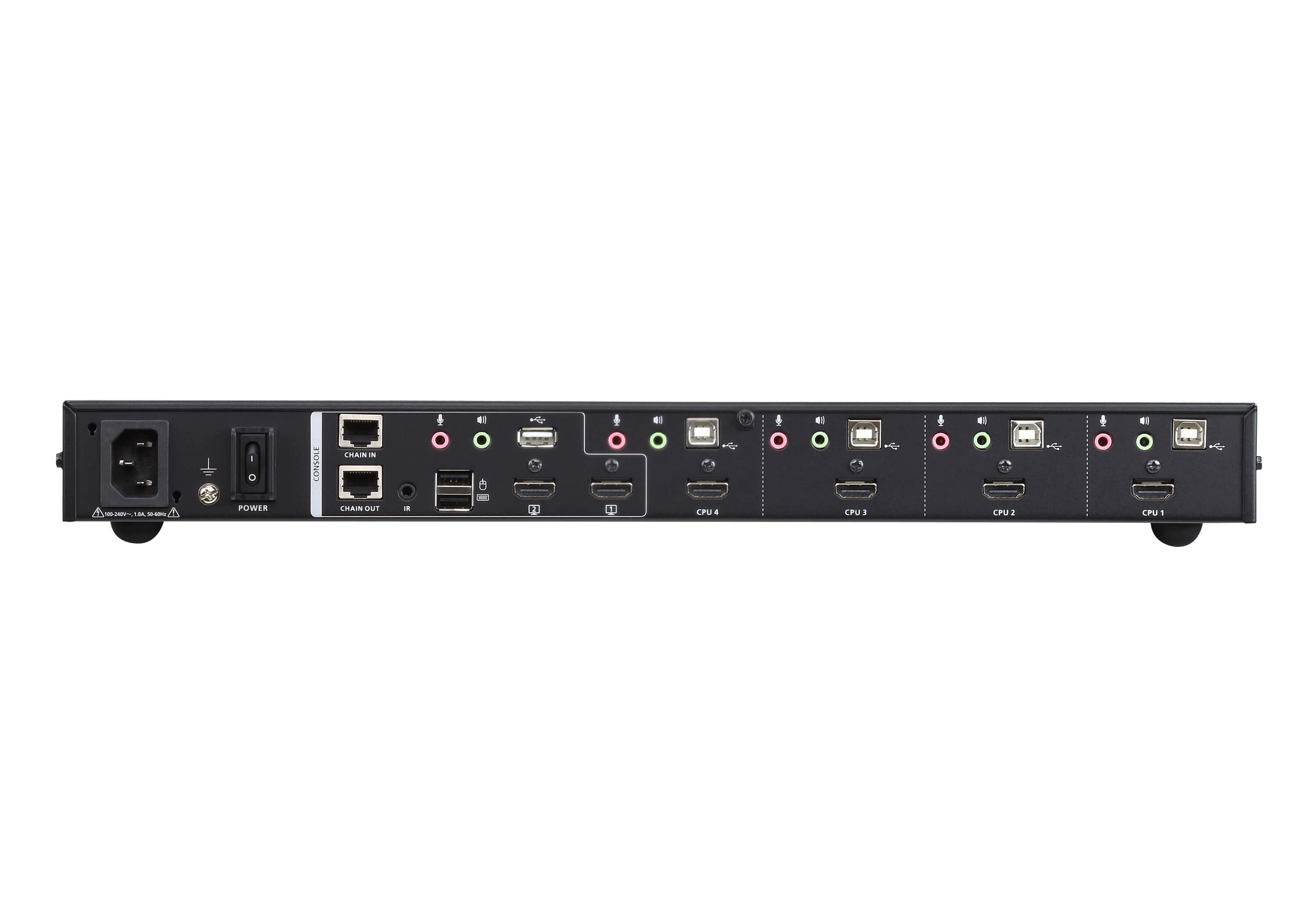

Connectors
Console Ports
2 x USB Type A Female
2 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front panel,1 x rear panel)
2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
2 x RJ-45
KVM (Computer) Ports
4 x USB Type B Female (White)
4 x HDMI Female (Black)
4 x 3.5mm Audio Jack Female (Green)
4 x 3.5mm Audio Jack Female (Pink)
Power
1 x IEC320 Jack
USB Hub
2 x USB 2.0 Type A Female (1 x front panel; 1 x rear panel)
Switches
Selected
11 x Pushbuttons
LEDs
KVM
4 (Orange)
Audio
4 (Green)
USB
4 (Green)
Emulation
Keyboard / Mouse
USB
Video
4096 x 2160 @ 30 Hz
Scan Interval
5, 10, 15, 30, 60, 90 seconds (default: 5 seconds)
Maximum Input Power Rating
100-240 VAC; 50/60 Hz; 1A
Power Consumption
AC110V:16.0W:101BTU
AC220V:14.8W:95BTU
Environmental
Operating Temperature
0-50°C
Storage Temperature
-20-60°C
Humidity
0-95% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
2.46 kg ( 5.42 lb )
Dimensions (L x W x H)
43.72 x 16.40 x 4.40 cm
(17.21 x 6.46 x 1.73 in.)
Package Contents
1x CM1284 4-Port USB HDMI Multi-View KVMPTM Switch
4x USB HDMI Cables
1x Power Cord
1x IR Remote Control
1x Rack Mount Kit
1x User Instructions
